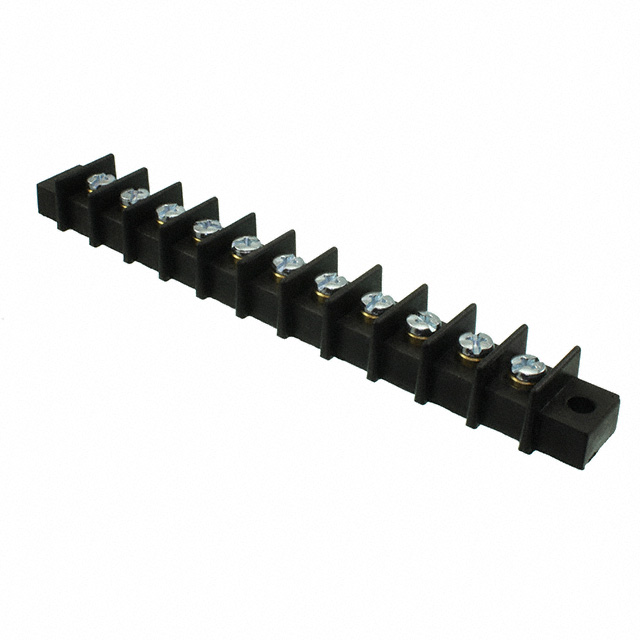

GBSX-11

Active

Curtis Industries

CONN BARRIER STRP 11CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBSX-11

Active

Curtis Industries

CONN BARRIER STRP 11CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GBSX-11	GBSX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Closed	Closed
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	11	1 - 26
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	11	3 - 26
Number of Wire Entries	-	1
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GBSX Series

CONN BARRIER STRP 11CIRC 0.438"

Part	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Terminal Block Type	Pitch [x]	Pitch [x]	Color	Number of Circuits	Material - Insulation	Material Flammability Rating	Mounting Type	Number of Rows	Current Rating (Amps)	Bottom Termination	Operating Temperature	Number of Wire Entries	Features	Terminal Screw Material	Barrier Type	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries GBSX-11	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	11	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	11	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-10	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	10	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	10	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-1	12 AWG	22 AWG	Screws	Barrier Block			Black	1	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C		Flange	Steel	2 Wall (Dual)	1
Curtis Industries GBSX-4	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	4	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	4	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-8	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black		Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	8	Flange	Steel	2 Wall (Dual)		8
Curtis Industries GBSX-13	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	13	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	13	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-9	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black		Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	9	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-5	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	5	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	5	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-7	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	7	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	7	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-20	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	20	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	20	Flange	Steel	2 Wall (Dual)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.12
		10	$ 6.10
		25	$ 5.82
		50	$ 5.45

Description

General part information

GBSX Series

11 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
