GBSX-7

Active

Curtis Industries

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBSX-7

Active

Curtis Industries

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.58
		10	$ 8.94
		25	$ 7.92
		50	$ 7.31
		100	$ 6.81
		250	$ 6.31
		500	$ 6.02
		1000	$ 5.79

Description

General part information

GBSX Series

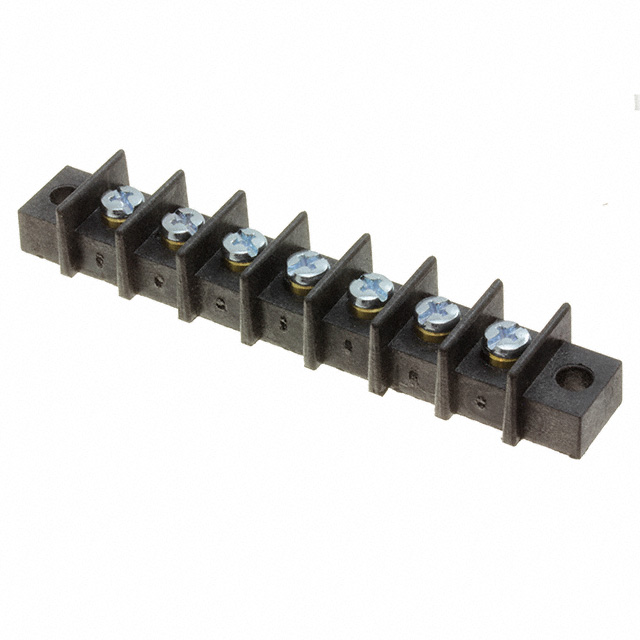

7 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GBSX-7	GBSX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Closed	Closed
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	7	1 - 26
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	7	3 - 26
Number of Wire Entries	-	1
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GBSX Series

CONN BARRIER STRP 11CIRC 0.438"

Part	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Terminal Block Type	Pitch [x]	Pitch [x]	Color	Number of Circuits	Material - Insulation	Material Flammability Rating	Mounting Type	Number of Rows	Current Rating (Amps)	Bottom Termination	Operating Temperature	Number of Wire Entries	Features	Terminal Screw Material	Barrier Type	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries GBSX-11	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	11	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	11	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-10	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	10	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	10	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-1	12 AWG	22 AWG	Screws	Barrier Block			Black	1	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C		Flange	Steel	2 Wall (Dual)	1
Curtis Industries GBSX-4	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	4	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	4	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-8	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black		Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	8	Flange	Steel	2 Wall (Dual)		8
Curtis Industries GBSX-13	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	13	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	13	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-9	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black		Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	9	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-5	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	5	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	5	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-7	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	7	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	7	Flange	Steel	2 Wall (Dual)
Curtis Industries GBSX-20	12 AWG	22 AWG	Screws	Barrier Block	11.12 mm	0.438 in	Black	20	Polyphenylene Oxide (PPO)	UL94 V-0	Chassis, Panel	1	20 A	Closed	110 °C	20	Flange	Steel	2 Wall (Dual)
