346-044-521-101

Active

EDAC Inc.

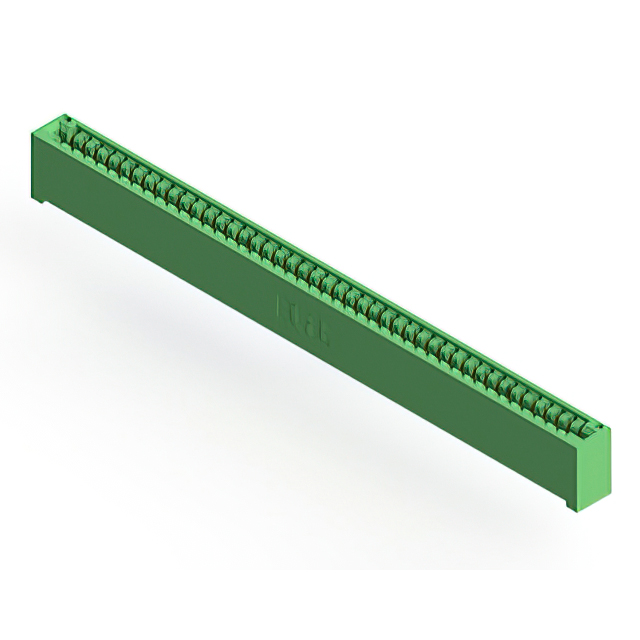

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

346-044-521-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-044-521-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	44
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

346-044 Series

...

Part	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Gender	Contact Type	Number of Positions/Bay/Row [custom]	Read Out	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Material	Number of Rows	Features	Pitch [x]	Pitch [x]	Color	Contact Finish	Number of Positions	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 346-044-555-203	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	Cantilever	22	Dual	2	10 Áin	0.25 Ám	Solder Eyelet(s)	Copper Alloy	2	Card Extender	0.125 in	3.18 mm	Green	Gold	44	Board Edge Straddle Mount	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 346-044-556-201	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	Cantilever	22	Dual	2	10 Áin	0.25 Ám	Solder	Copper Alloy	2	Card Extender	0.125 in	3.18 mm	Green	Gold	44	Board Edge Straddle Mount
EDAC Inc. 346-044-521-804	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	Cantilever	22	Dual	2	10 Áin	0.25 Ám	Solder	Copper Alloy	2		0.125 in	3.18 mm	Green	Gold	44	Through Hole	0.156 in	Top Mount Opening Unthreaded	3.96 mm
EDAC Inc. 346-044-522-212	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	Cantilever	22	Dual	2	10 Áin	0.25 Ám	Solder	Copper Alloy	2		0.125 in	3.18 mm	Green	Gold	44	Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
EDAC Inc. 346-044-521-602	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	Cantilever	44	Single	1	10 Áin	0.25 Ám	Solder	Copper Alloy	1		0.125 in	3.18 mm	Green	Gold	44	Through Hole				3.25 mm	0.128 in
EDAC Inc. 346-044-521-101	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	Cantilever	44	Single	1	10 Áin	0.25 Ám	Solder	Copper Alloy	1		0.125 in	3.18 mm	Green	Gold	44	Through Hole
EDAC Inc. 346-044-526-207	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	Cantilever	22	Dual	2	10 Áin	0.25 Ám	Solder	Copper Alloy	2		0.125 in	3.18 mm	Green	Gold	44	Through Hole		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 346-044-521-208	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	Cantilever	22	Dual	2	10 Áin	0.25 Ám	Solder	Copper Alloy	2		0.125 in	3.18 mm	Green	Gold	44	Through Hole		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 346-044-526-608	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	Cantilever	44	Single	1	10 Áin	0.25 Ám	Solder	Copper Alloy	1		0.125 in	3.18 mm	Green	Gold	44	Through Hole		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 346-044-500-101	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	Cantilever	44	Single	1	10 Áin	0.25 Ám	Solder Eyelet(s)	Copper Alloy	1		0.125 in	3.18 mm	Green	Gold	44	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.14
LCSC	Piece	1	$ 9.91
		200	$ 3.84
		500	$ 3.70
		1000	$ 3.63
Newark	Each	25	$ 9.98
		50	$ 9.75
		100	$ 9.28
		250	$ 9.05
		500	$ 8.73

Description

General part information

346-044 Series

44 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Enhanced Product Overview EN

Datasheet
