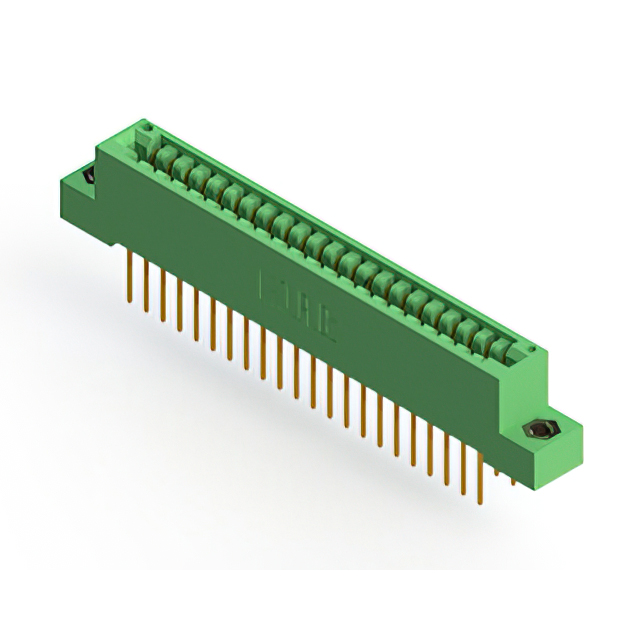

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-044-526-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-044-526-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-044 Series
...
| Part | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Gender | Contact Type | Number of Positions/Bay/Row [custom] | Read Out | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Number of Rows | Features | Pitch [x] | Pitch [x] | Color | Contact Finish | Number of Positions | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | Cantilever | 22 | Dual | 2 | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Copper Alloy | 2 | Card Extender | 0.125 in | 3.18 mm | Green | Gold | 44 | Board Edge Straddle Mount | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | Cantilever | 22 | Dual | 2 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 2 | Card Extender | 0.125 in | 3.18 mm | Green | Gold | 44 | Board Edge Straddle Mount | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | Cantilever | 22 | Dual | 2 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 2 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | |||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | Cantilever | 22 | Dual | 2 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 2 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | |||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Single Edge | Female | Cantilever | 44 | Single | 1 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 1 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Single Edge | Female | Cantilever | 44 | Single | 1 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 1 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole | ||||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | Cantilever | 22 | Dual | 2 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 2 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | Cantilever | 22 | Dual | 2 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 2 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Single Edge | Female | Cantilever | 44 | Single | 1 | 10 Áin | 0.25 Ám | Solder | Copper Alloy | 1 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Single Edge | Female | Cantilever | 44 | Single | 1 | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Copper Alloy | 1 | 0.125 in | 3.18 mm | Green | Gold | 44 | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
