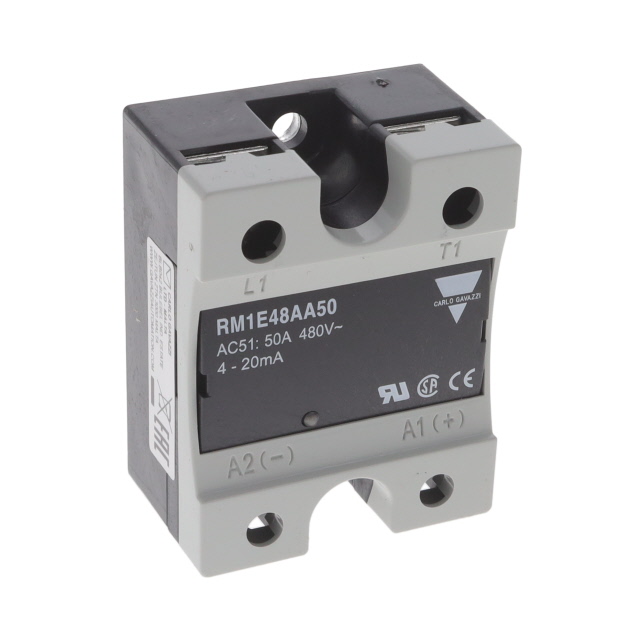

RM1E48AA50

Active

CARLO GAVAZZI

SOLID STATE RELAY, 50A, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SOLID STATE RELAY, 50A, PANEL ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck

Technical documentation and resources

Specification	RM1E48AA50	RM1E48 Series

Approval Agency	UKCA, CSA, EAC, CE, cURus	UKCA, CSA, EAC, CE, cURus, CCC
Load Current	50 A	25 - 50 A
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Output Type	AC, Zero Cross	AC, Proportional Control, AC, Zero Cross
Package / Case	Hockey Puck	Hockey Puck
Termination Style	Screw Terminal	Screw Terminal
Voltage - Input [Max]	20 mA	10 - 20 mA
Voltage - Input [Min]	4 mA	0 - 4 mA
Voltage - Load [Max]	460 V	460 - 550 V
Voltage - Load [Min]	340 V	200 - 340 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Load Current	Package / Case	Output Type	Termination Style
CARLO GAVAZZI RM1E48AA25	4 mA	20 mA	CE, CSA, cURus, EAC, UKCA	-20 C	70 °C	200 V	550 V	Chassis Mount	25 A	Hockey Puck	AC, Proportional Control	Screw Terminal
CARLO GAVAZZI RM1E48V50	0 V	10 V	CCC, CE, CSA, cURus, EAC, UKCA	-20 C	70 °C	200 V	550 V	Chassis Mount	50 A	Hockey Puck	AC, Zero Cross	Screw Terminal
CARLO GAVAZZI RM1E48AA50	4 mA	20 mA	CE, CSA, cURus, EAC, UKCA	-20 C	70 °C	340 V	460 V	Chassis Mount	50 A	Hockey Puck	AC, Zero Cross	Screw Terminal
