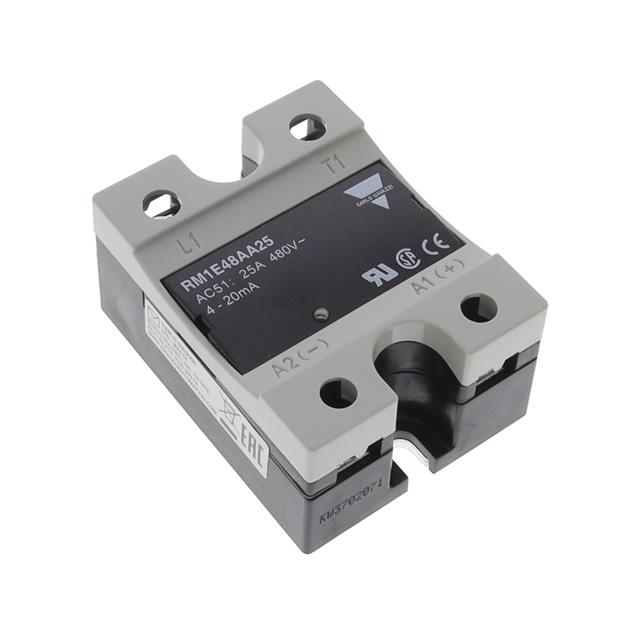

RM1E48AA25

Active

CARLO GAVAZZI

SSR RELAY SPST-NO 25A 200-550V

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SSR RELAY SPST-NO 25A 200-550V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RM1E48AA25	RM1E48 Series

Approval Agency	UKCA, CSA, EAC, CE, cURus	UKCA, CSA, EAC, CE, cURus, CCC
Load Current	25 A	25 - 50 A
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Output Type	AC, Proportional Control	AC, Proportional Control, AC, Zero Cross
Package / Case	Hockey Puck	Hockey Puck
Termination Style	Screw Terminal	Screw Terminal
Voltage - Input [Max]	20 mA	10 - 20 mA
Voltage - Input [Min]	4 mA	0 - 4 mA
Voltage - Load [Max]	550 V	460 - 550 V
Voltage - Load [Min]	200 V	200 - 340 V

SSR RELAY SPST-NO 25A 200-550V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Load Current	Package / Case	Output Type	Termination Style
CARLO GAVAZZI RM1E48AA25	4 mA	20 mA	CE, CSA, cURus, EAC, UKCA	-20 C	70 °C	200 V	550 V	Chassis Mount	25 A	Hockey Puck	AC, Proportional Control	Screw Terminal
CARLO GAVAZZI RM1E48V50	0 V	10 V	CCC, CE, CSA, cURus, EAC, UKCA	-20 C	70 °C	200 V	550 V	Chassis Mount	50 A	Hockey Puck	AC, Zero Cross	Screw Terminal
CARLO GAVAZZI RM1E48AA50	4 mA	20 mA	CE, CSA, cURus, EAC, UKCA	-20 C	70 °C	340 V	460 V	Chassis Mount	50 A	Hockey Puck	AC, Zero Cross	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
