1-1971905-4

Active

TE Connectivity Raychem Cable Protection

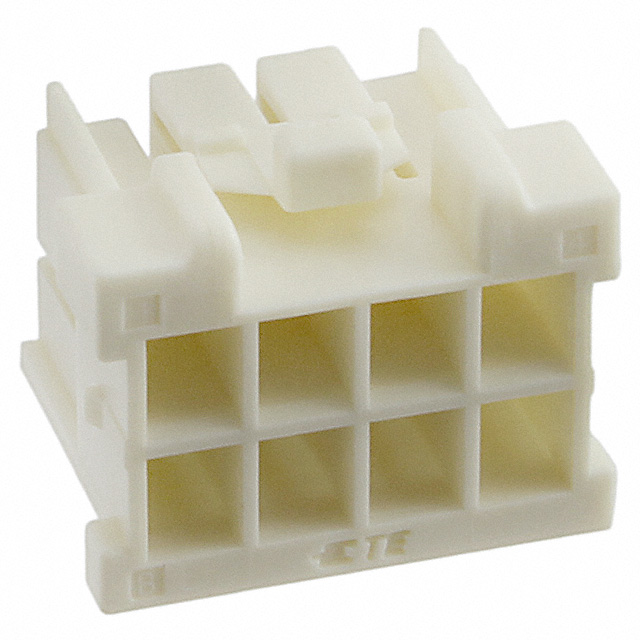

CONN HOUSING PL 8 POS 3.3MM CRIMP ST CABLE MOUNT NATURAL BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1971905-4

Active

TE Connectivity Raychem Cable Protection

CONN HOUSING PL 8 POS 3.3MM CRIMP ST CABLE MOUNT NATURAL BAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1971905-4

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.13 in
Pitch [x]	3.3 mm
Row Spacing	0.205 in
Row Spacing	5.2 mm

GRACE INERTIA 3.3 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Fastening Type	Note	Mounting Type	Contact Type	Number of Positions	Insulation Material	Number of Rows	Contact Termination	Color	Connector Type	Row Spacing	Row Spacing	Features	Row Spacing - Mating [x]	Row Spacing - Mating	Number of Positions Loaded	Contact Material	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Applications	Shrouding	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Style	Contact Shape	Voltage Rating	Accessory Type	For Use With/Related Products	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish
TE Connectivity Raychem Cable Protection 4-1971905-3	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	6	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Yellow	Plug	0.205 in	5.2 mm
TE Connectivity Raychem Cable Protection 1-1971906-2	-30 ░C	105 ░C			Latch Holder		Through Hole	Male Pin	4	Polyamide (PA66) Nylon 6/6 Glass Filled	2			Header			Board Guide	0.205 in	5.2 mm	All	Brass	Natural	UL94 V-0	0.561 in	14.25 mm	General Purpose Industrial	Shrouded - 4 Wall	3.3 mm	0.13 in	Kinked Pin Solder	0.118 in	3 mm	Varies by Wire Gauge	0.575 in	14.6 mm	Tin	Board to Cable/Wire	Square	250 VAC
TE Connectivity Raychem Cable Protection 1-1971905-4	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	8	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Natural	Plug	0.205 in	5.2 mm
TE Connectivity Raychem Cable Protection 2-1971905-6	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	12	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Blue	Plug	0.205 in	5.2 mm
TE Connectivity Raychem Cable Protection 2-1971904-6									12																															Terminal Position Assurance (TPA)	Grace Inertia Connectors
TE Connectivity Raychem Cable Protection 1971904-3									6																															Terminal Position Assurance (TPA)	Grace Inertia Connectors
TE Connectivity Raychem Cable Protection 4-1971906-3	-30 ░C	105 ░C			Latch Holder		Through Hole	Male Pin	6	Polyamide (PA66) Nylon 6/6 Glass Filled	2			Header			Board Guide	0.205 in	5.2 mm	All	Brass	Yellow	UL94 V-0	0.561 in	14.25 mm	General Purpose Industrial	Shrouded - 4 Wall	3.3 mm	0.13 in	Kinked Pin Solder	0.118 in	3 mm	Varies by Wire Gauge	0.575 in	14.6 mm	Tin	Board to Cable/Wire	Square	250 VAC
TE Connectivity Raychem Cable Protection 2-1971906-6	-30 ░C	105 ░C			Latch Holder		Through Hole	Male Pin	12	Polyamide (PA66) Nylon 6/6 Glass Filled	2			Header			Board Guide	0.205 in	5.2 mm	All	Brass	Blue	UL94 V-0	0.561 in	14.25 mm	General Purpose Industrial	Shrouded - 4 Wall	3.3 mm	0.13 in	Kinked Pin Solder	0.118 in	3 mm	Varies by Wire Gauge	0.575 in	14.6 mm	Tin	Board to Cable/Wire	Square	250 VAC
TE Connectivity Raychem Cable Protection 2318950-1												Crimp																														20 AWG	24 AWG	Socket	Tin
TE Connectivity Raychem Cable Protection 1-1971905-2	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	4	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Natural	Plug	0.205 in	5.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	350	$ 0.18
		750	$ 0.18
		1900	$ 0.17
		3800	$ 0.17
		7500	$ 0.17
		21600	$ 0.15
		25000	$ 0.15
Digikey	Bulk	1	$ 0.34
		10	$ 0.29
		25	$ 0.27
		50	$ 0.26
		100	$ 0.25
		250	$ 0.23
		900	$ 0.21
		1800	$ 0.20
		2700	$ 0.19

Description

General part information

GRACE INERTIA 3.3 Series

CONN HOUSING PL 8 POS 3.3MM CRIMP ST CABLE MOUNT NATURAL BAG
