1-1971906-2

Active

TE Connectivity Raychem Cable Protection

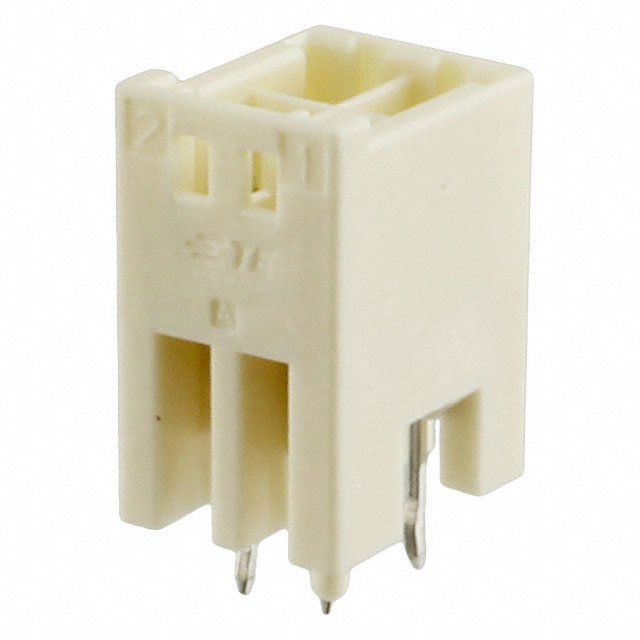

CONN HEADER VERT 4POS 3.3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1971906-2

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 4POS 3.3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1971906-2

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.561 in
Insulation Height	14.25 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	0.575 in
Overall Contact Length	14.6 mm
Pitch - Mating	3.3 mm
Pitch - Mating	0.13 in
Row Spacing - Mating	5.2 mm
Row Spacing - Mating [x]	0.205 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VAC

GRACE INERTIA 3.3 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Fastening Type	Note	Mounting Type	Contact Type	Number of Positions	Insulation Material	Number of Rows	Contact Termination	Color	Connector Type	Row Spacing	Row Spacing	Features	Row Spacing - Mating [x]	Row Spacing - Mating	Number of Positions Loaded	Contact Material	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Applications	Shrouding	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Style	Contact Shape	Voltage Rating	Accessory Type	For Use With/Related Products	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish
TE Connectivity Raychem Cable Protection 4-1971905-3	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	6	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Yellow	Plug	0.205 in	5.2 mm
TE Connectivity Raychem Cable Protection 1-1971906-2	-30 ░C	105 ░C			Latch Holder		Through Hole	Male Pin	4	Polyamide (PA66) Nylon 6/6 Glass Filled	2			Header			Board Guide	0.205 in	5.2 mm	All	Brass	Natural	UL94 V-0	0.561 in	14.25 mm	General Purpose Industrial	Shrouded - 4 Wall	3.3 mm	0.13 in	Kinked Pin Solder	0.118 in	3 mm	Varies by Wire Gauge	0.575 in	14.6 mm	Tin	Board to Cable/Wire	Square	250 VAC
TE Connectivity Raychem Cable Protection 1-1971905-4	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	8	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Natural	Plug	0.205 in	5.2 mm
TE Connectivity Raychem Cable Protection 2-1971905-6	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	12	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Blue	Plug	0.205 in	5.2 mm
TE Connectivity Raychem Cable Protection 2-1971904-6									12																															Terminal Position Assurance (TPA)	Grace Inertia Connectors
TE Connectivity Raychem Cable Protection 1971904-3									6																															Terminal Position Assurance (TPA)	Grace Inertia Connectors
TE Connectivity Raychem Cable Protection 4-1971906-3	-30 ░C	105 ░C			Latch Holder		Through Hole	Male Pin	6	Polyamide (PA66) Nylon 6/6 Glass Filled	2			Header			Board Guide	0.205 in	5.2 mm	All	Brass	Yellow	UL94 V-0	0.561 in	14.25 mm	General Purpose Industrial	Shrouded - 4 Wall	3.3 mm	0.13 in	Kinked Pin Solder	0.118 in	3 mm	Varies by Wire Gauge	0.575 in	14.6 mm	Tin	Board to Cable/Wire	Square	250 VAC
TE Connectivity Raychem Cable Protection 2-1971906-6	-30 ░C	105 ░C			Latch Holder		Through Hole	Male Pin	12	Polyamide (PA66) Nylon 6/6 Glass Filled	2			Header			Board Guide	0.205 in	5.2 mm	All	Brass	Blue	UL94 V-0	0.561 in	14.25 mm	General Purpose Industrial	Shrouded - 4 Wall	3.3 mm	0.13 in	Kinked Pin Solder	0.118 in	3 mm	Varies by Wire Gauge	0.575 in	14.6 mm	Tin	Board to Cable/Wire	Square	250 VAC
TE Connectivity Raychem Cable Protection 2318950-1												Crimp																														20 AWG	24 AWG	Socket	Tin
TE Connectivity Raychem Cable Protection 1-1971905-2	-30 ░C	105 ░C	0.13 in	3.3 mm	Latch Lock	Contacts Not Included	Free Hanging (In-Line)	Female Socket	4	Polyamide (PA66) Nylon 6/6 Glass Filled	2	Crimp	Natural	Plug	0.205 in	5.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.18
		10	$ 0.16
		25	$ 0.16
		80	$ 0.15
		425	$ 0.12
		850	$ 0.11

Description

General part information

GRACE INERTIA 3.3 Series

Connector Header Through Hole 4 position 0.130" (3.30mm)
