FTMH-137-03-H-DV-EC-P

Active

Samtec Inc.

CONN HEADER SMD 74POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTMH Series Other Related Documents 01 FTMH Datasheet +1

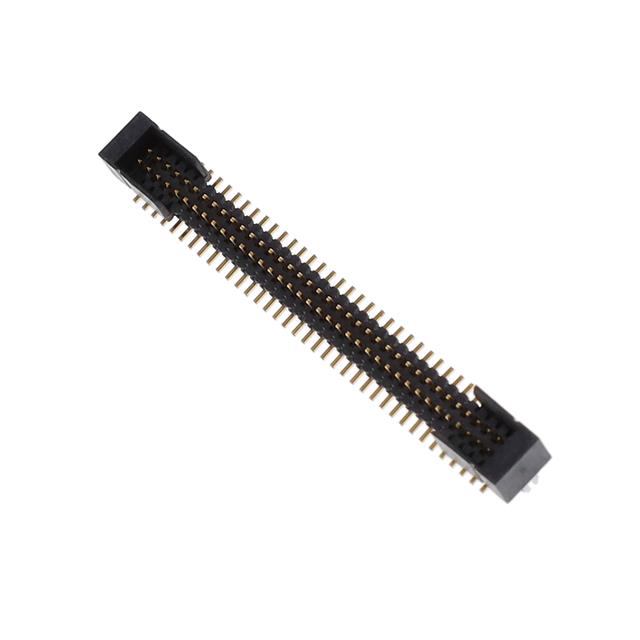

FTMH-137-03-H-DV-EC-P

Active

Samtec Inc.

CONN HEADER SMD 74POS 1MM

Deep-Dive with AI

DocumentsFTMH Series Other Related Documents 01 FTMH Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-137-03-H-DV-EC-P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds, Pick and Place, Board Lock
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	74
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTMH-137 Series

Part	Insulation Color	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish - Post	Features	Material Flammability Rating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Finish - Mating	Contact Shape	Insulation Height	Insulation Height	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Material	Number of Positions Loaded
Samtec Inc. FTMH-137-03-H-DV-ES	Black	Unshrouded	3 µin	0.076 µm	Male Pin	Gold	End Shrouds	UL94 V-0	Surface Mount	0.065 in	1.65 mm	2.8 A per Contact	0.039 "	1 mm	2	Gold	Square	1.5 mm	0.059 "	Phosphor Bronze	-55 °C	125 °C	Solder	74	Header	0.039 in	1 mm	30 Áin	0.76 Ám	Push-Pull	Liquid Crystal Polymer (LCP)	All
Samtec Inc. FTMH-137-03-H-DV-EC-P	Black	Unshrouded	3 µin	0.076 µm	Male Pin	Gold	Board Lock End Shrouds Pick and Place	UL94 V-0	Surface Mount	0.065 in	1.65 mm	2.8 A per Contact	0.039 "	1 mm	2	Gold	Square	1.5 mm	0.059 "	Phosphor Bronze	-55 °C	125 °C	Solder	74	Header	0.039 in	1 mm	30 Áin	0.76 Ám	Push-Pull	Liquid Crystal Polymer (LCP)	All
Samtec Inc. FTMH-137-03-H-DV-ES-P-TR	Black	Unshrouded	3 µin	0.076 µm	Male Pin	Gold	End Shrouds Pick and Place	UL94 V-0	Surface Mount	0.065 in	1.65 mm	2.8 A per Contact	0.039 "	1 mm	2	Gold	Square	1.5 mm	0.059 "	Phosphor Bronze	-55 °C	125 °C	Solder	74	Header	0.039 in	1 mm	30 Áin	0.76 Ám	Push-Pull	Liquid Crystal Polymer (LCP)	All
Samtec Inc. FTMH-137-03-H-DV-EC-P-TR	Black	Unshrouded	3 µin	0.076 µm	Male Pin	Gold	Board Lock End Shrouds Pick and Place	UL94 V-0	Surface Mount	0.065 in	1.65 mm	2.8 A per Contact	0.039 "	1 mm	2	Gold	Square	1.5 mm	0.059 "	Phosphor Bronze	-55 °C	125 °C	Solder	74	Header	0.039 in	1 mm	30 Áin	0.76 Ám	Push-Pull	Liquid Crystal Polymer (LCP)	All
Samtec Inc. FTMH-137-03-L-DV-EC-P	Black	Unshrouded			Male Pin	Tin	Board Lock End Shrouds Pick and Place	UL94 V-0	Surface Mount	0.065 in	1.65 mm	2.8 A per Contact	0.039 "	1 mm	2	Gold	Square	1.5 mm	0.059 "	Phosphor Bronze	-55 °C	125 °C	Solder	74	Header	0.039 in	1 mm	10 çin	0.25 çm	Push-Pull	Liquid Crystal Polymer (LCP)	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 17.44
		10	$ 14.82
		100	$ 12.60
		500	$ 12.36

Description

General part information

FTMH-137 Series

Connector Header Surface Mount 74 position 0.039" (1.00mm)

Documents

Technical documentation and resources

FTMH Series Other Related Documents 01

FTMH Datasheet

Datasheet
