FTMH-137-03-H-DV-ES-P-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS 1.00 MM SURFACE MOUNT MICRO TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

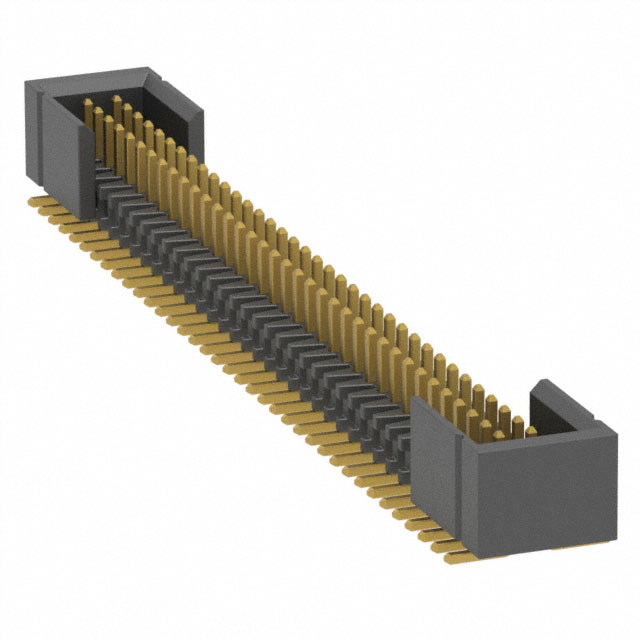

FTMH-137-03-H-DV-ES-P-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS 1.00 MM SURFACE MOUNT MICRO TERMINAL STRIP

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-137-03-H-DV-ES-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds, Pick and Place
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	74
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTMH-110 Series

Headers & Wire Housings 1.00 mm Surface Mount Micro Terminal Strip

...

Part	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Termination	Mounting Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Shrouding	Material Flammability Rating	Contact Type	Number of Rows	Contact Finish - Post	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Features
Samtec Inc. FTMH-130-03-H-DV-ES-A-P-TR	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	30 Áin	0.76 Ám	60	Unshrouded	UL94 V-0	Male Pin	2	Gold	Phosphor Bronze	3 µin	0.076 µm	Black	0.065 in	1.65 mm
Samtec Inc. FTMH-112-02-F-DV-A-P-TR	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	3 µin	0.076 µm	24	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black			1.9 mm	0.075 in	Board Guide Pick and Place
Samtec Inc. FTMH-110-03-F-DV-ES-A-TR	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	3 µin	0.076 µm	20	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black	0.065 in	1.65 mm			Board Guide End Shrouds
Samtec Inc. FTMH-130-03-F-DV-ES	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	3 µin	0.076 µm	60	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black	0.065 in	1.65 mm			End Shrouds
Samtec Inc. FTMH-110-03-F-DV-A	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	3 µin	0.076 µm	20	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black	0.065 in	1.65 mm			End Shrouds
Samtec Inc. FTMH-132-03-F-DV	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	3 µin	0.076 µm	64	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black	0.065 in	1.65 mm
Samtec Inc. FTMH-130-02-LM-DV-EC	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	10 çin	0.25 çm	60	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black			1.9 mm	0.075 in	Board Lock End Shrouds
Samtec Inc. FTMH-110-03-L-DH-K	0.039 in	1 mm	All	3.18 mm	0.125 in	Square	Solder	Surface Mount Right Angle	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	10 çin	0.25 çm	20	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black	0.065 in	1.65 mm			Pick and Place
Samtec Inc. FTMH-110-03-F-DV-EP-P	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	3 µin	0.076 µm	20	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black	0.065 in	1.65 mm
Samtec Inc. FTMH-110-02-F-DV-ES-A-TR	0.039 in	1 mm	All	1.5 mm	0.059 "	Square	Solder	Surface Mount	Gold	0.039 "	1 mm	Header	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Push-Pull	2.8 A per Contact	3 µin	0.076 µm	20	Unshrouded	UL94 V-0	Male Pin	2	Tin	Phosphor Bronze			Black			1.9 mm	0.075 in	Board Guide End Shrouds
