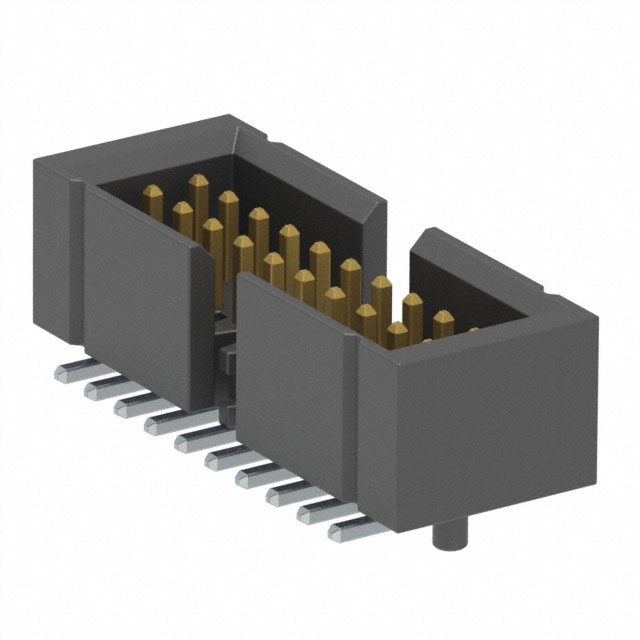

FTMH-110-03-F-DV-ES-A-TR
ActiveSamtec Inc.
CONN HEADER SMD 20POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FTMH-110-03-F-DV-ES-A-TR
ActiveSamtec Inc.
CONN HEADER SMD 20POS 1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FTMH-110-03-F-DV-ES-A-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Length - Mating | 0.065 in |
| Contact Length - Mating | 1.65 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.8 A per Contact |
| Fastening Type | Push-Pull |
| Features | Board Guide, End Shrouds |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
FTMH-110 Series
Headers & Wire Housings 1.00 mm Surface Mount Micro Terminal Strip
...
| Part | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Shape | Termination | Mounting Type | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Shrouding | Material Flammability Rating | Contact Type | Number of Rows | Contact Finish - Post | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Contact Length - Mating | Contact Length - Mating | Contact Length - Mating [x] | Contact Length - Mating [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 30 Áin | 0.76 Ám | 60 | Unshrouded | UL94 V-0 | Male Pin | 2 | Gold | Phosphor Bronze | 3 µin | 0.076 µm | Black | 0.065 in | 1.65 mm | |||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 3 µin | 0.076 µm | 24 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 1.9 mm | 0.075 in | Board Guide Pick and Place | ||||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 3 µin | 0.076 µm | 20 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 0.065 in | 1.65 mm | Board Guide End Shrouds | ||||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 3 µin | 0.076 µm | 60 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 0.065 in | 1.65 mm | End Shrouds | ||||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 3 µin | 0.076 µm | 20 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 0.065 in | 1.65 mm | End Shrouds | ||||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 3 µin | 0.076 µm | 64 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 0.065 in | 1.65 mm | |||||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 10 çin | 0.25 çm | 60 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 1.9 mm | 0.075 in | Board Lock End Shrouds | ||||
Samtec Inc. | 0.039 in | 1 mm | All | 3.18 mm | 0.125 in | Square | Solder | Surface Mount Right Angle | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 10 çin | 0.25 çm | 20 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 0.065 in | 1.65 mm | Pick and Place | ||||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 3 µin | 0.076 µm | 20 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 0.065 in | 1.65 mm | |||||
Samtec Inc. | 0.039 in | 1 mm | All | 1.5 mm | 0.059 " | Square | Solder | Surface Mount | Gold | 0.039 " | 1 mm | Header | Liquid Crystal Polymer (LCP) | -55 °C | 125 °C | Push-Pull | 2.8 A per Contact | 3 µin | 0.076 µm | 20 | Unshrouded | UL94 V-0 | Male Pin | 2 | Tin | Phosphor Bronze | Black | 1.9 mm | 0.075 in | Board Guide End Shrouds |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 875 | $ 3.16 | |
Description
General part information
FTMH-110 Series
Headers & Wire Housings 1.00 mm Surface Mount Micro Terminal Strip
