78253/55MVC-R

Active

Murata Power Solutions Inc.

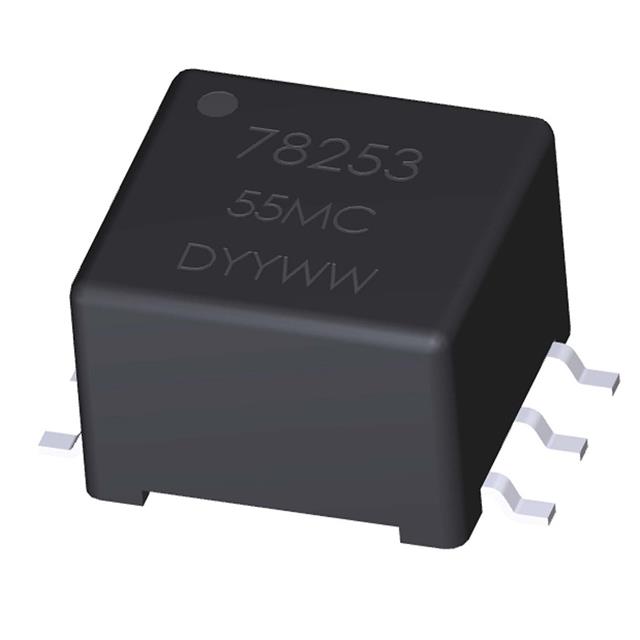

TRANSFORMER, CONVERTER, 5V, 200MA, 4000V, SMD, 1:1.33 TURN RATIO, MAX253 COMPATIBLE

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

TRANSFORMER, CONVERTER, 5V, 200MA, 4000V, SMD, 1:1.33 TURN RATIO, MAX253 COMPATIBLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	78253/55MVC-R	78253 Series

For Use With/Related Products	-	MAX253
Height - Seated (Max)	-	0.26 in
Height - Seated (Max)	-	6.6 mm
Height - Seated (Max)	-	6.35 mm
Height - Seated (Max)	-	0.25 in
Inductance	-	142 - 830 µH
Mounting Type	-	Surface Mount, Through Hole
null		-
Size / Dimension	-	9.52 mm
Size / Dimension	-	0.354 in
Size / Dimension	-	0.375 in
Size / Dimension	-	9 mm
Weight	-	0.04 - 1 oz
Weight	-	1.14 g
Weight	-	0.002 - 0.035 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.54
	Digi-Reel®	1	$ 2.54
	Tape & Reel (TR)	500	$ 2.71
		1000	$ 2.54
Newark	Each (Supplied on Cut Tape)	1	$ 3.03

SMPS TRANSFORMER, SMD, CONVERTER, 200 MA, 500KHZ, 1 W, 4 KV, 5V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Inductance	Mounting Type	For Use With/Related Products	Weight	Height - Seated (Max)	Height - Seated (Max) [Max]
Murata Power Solutions Inc. 78253/55MVC	0.26 in	6.6 mm	0.04 oz	1.14 g	240 µH	Surface Mount	MAX253
Murata Power Solutions Inc. 78253/55MVC
Murata Power Solutions Inc. 78253/55JC	0.26 in	6.6 mm	0.91 g		360 µH	Surface Mount	MAX253	0.002 lb
Murata Power Solutions Inc. 78253/55JC-R
Murata Power Solutions Inc. 78253/55C	0.26 in	6.6 mm	0.04 oz	1.14 g	830 µH	Through Hole	MAX253
Murata Power Solutions Inc. 78253/35JC-R
Murata Power Solutions Inc. 78253/35MVC-R
Murata Power Solutions Inc. 78253/55JC-R					830 µH	Surface Mount	MAX253		6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55MVC-R
Murata Power Solutions Inc. 78253/35JC-R					360 µH	Surface Mount	MAX253		6.35 mm	0.25 in

General part information

TRANSFORMER, CONVERTER, 5V, 200MA, 4000V, SMD, 1:1.33 TURN RATIO, MAX253 COMPATIBLE
