78253/55JC

Active

Murata Power Solutions Inc.

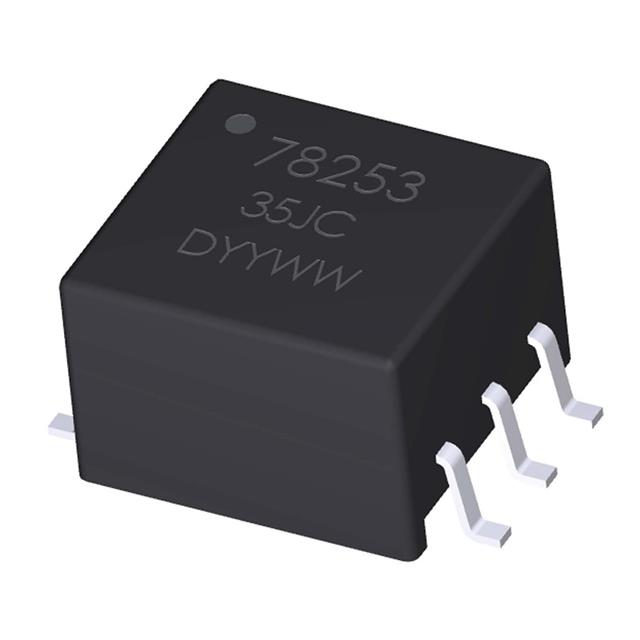

SMPS TRANSFORMER, TOROIDAL, 0.2A, SMT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, TOROIDAL, 0.2A, SMT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	78253/55JC	78253 Series

	-	-
For Use With/Related Products	MAX253	MAX253
Height - Seated (Max)	-	6.35 mm
Height - Seated (Max)	-	0.25 in
Height - Seated (Max) [Max] [z]	0.26 in	0.26 in
Height - Seated (Max) [Max] [z]	6.6 mm	6.6 mm
Inductance	360 µH	142 - 830 µH
Mounting Type	Surface Mount	Surface Mount, Through Hole
Size / Dimension	-	9.52 mm
Size / Dimension	-	0.354 in
Size / Dimension	-	0.375 in
Size / Dimension	-	9 mm
Weight	0.91 g	0.04 - 1 oz
Weight	0.002 lb	0.002 - 0.035 lb
Weight	-	1.14 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SMPS TRANSFORMER, SMD, CONVERTER, 200 MA, 500KHZ, 1 W, 4 KV, 5V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Inductance	Mounting Type	For Use With/Related Products	Weight	Height - Seated (Max)	Height - Seated (Max) [Max]
Murata Power Solutions Inc. 78253/55MVC	0.26 in	6.6 mm	0.04 oz	1.14 g	240 µH	Surface Mount	MAX253
Murata Power Solutions Inc. 78253/55MVC
Murata Power Solutions Inc. 78253/55JC	0.26 in	6.6 mm	0.91 g		360 µH	Surface Mount	MAX253	0.002 lb
Murata Power Solutions Inc. 78253/55JC-R
Murata Power Solutions Inc. 78253/55C	0.26 in	6.6 mm	0.04 oz	1.14 g	830 µH	Through Hole	MAX253
Murata Power Solutions Inc. 78253/35JC-R
Murata Power Solutions Inc. 78253/35MVC-R
Murata Power Solutions Inc. 78253/55JC-R					830 µH	Surface Mount	MAX253		6.35 mm	0.25 in
Murata Power Solutions Inc. 78253/55MVC-R
Murata Power Solutions Inc. 78253/35JC-R					360 µH	Surface Mount	MAX253		6.35 mm	0.25 in
