MCC94-20IO1B

Active

IXYS

MOD THYRISTOR DUAL 2000V TO240AA

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR DUAL 2000V TO240AA

Technical Specifications

Parameters and characteristics for this part

Specification	MCC94-20IO1B

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	1800 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	1700 A
Current - On State (It (AV)) (Max) [Max]	104 A
Current - On State (It (RMS)) (Max) [Max]	180 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	TO-240AA
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	2 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Gate Trigger (Igt) (Max) [Max] [x]	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Structure	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of SCRs, Diodes	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]
IXYS MCC94-20IO1B	1700 A	1800 A	100 mA	Chassis Mount	104 A	2 kV	150 mA	Series Connection - All SCRs	1.5 V	180 A	-40 °C	125 ¯C	2 SCRs	TO-240AA
IXYS MCC94-22IO1B	1700 A	1800 A	100 mA	Chassis Mount	104 A	2.2 kV	150 mA	Series Connection - All SCRs	1.5 V	180 A	-40 °C	125 ¯C	2 SCRs	TO-240AA
IXYS MCC94-24IO1B	1700 A	1840 A		Chassis Mount	104 A	2.4 kV	150 mA	Series Connection - All SCRs	1.5 V	180 A	-40 °C	125 ¯C	2 SCRs	Module	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	36	$ 50.60

General part information

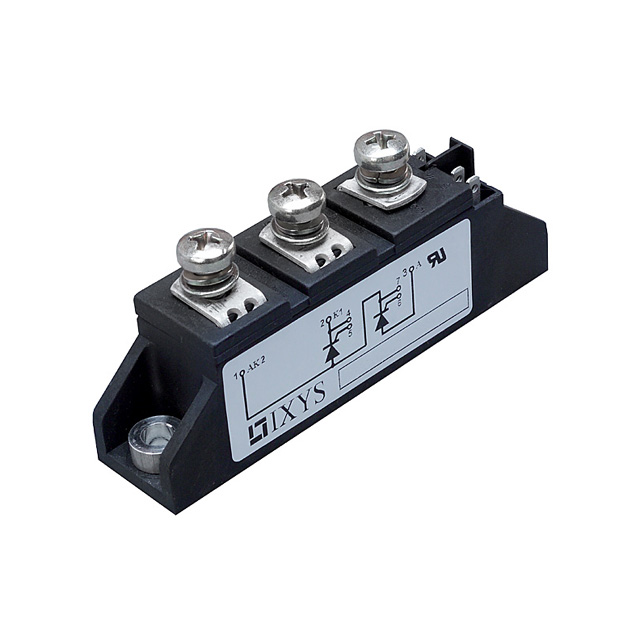

SCR Module 2 kV 180 A Series Connection - All SCRs Chassis Mount TO-240AA
