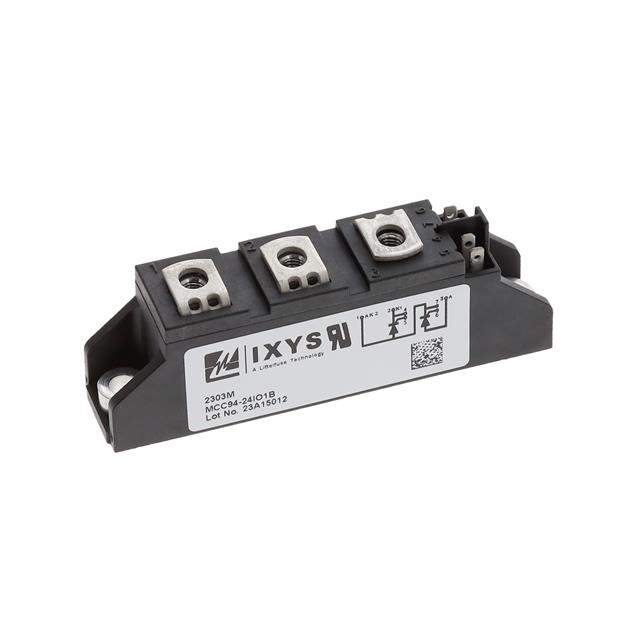

MCC94-24IO1B

Active

IXYS

MOD THYRISTOR DUAL 24KV

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR DUAL 24KV

Technical Specifications

Parameters and characteristics for this part

Specification	MCC94-24IO1B

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	1840 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	1700 A
Current - On State (It (AV)) (Max) [Max]	104 A
Current - On State (It (RMS)) (Max) [Max]	180 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	2.4 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Gate Trigger (Igt) (Max) [Max] [x]	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Structure	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of SCRs, Diodes	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]
IXYS MCC94-20IO1B	1700 A	1800 A	100 mA	Chassis Mount	104 A	2 kV	150 mA	Series Connection - All SCRs	1.5 V	180 A	-40 °C	125 ¯C	2 SCRs	TO-240AA
IXYS MCC94-22IO1B	1700 A	1800 A	100 mA	Chassis Mount	104 A	2.2 kV	150 mA	Series Connection - All SCRs	1.5 V	180 A	-40 °C	125 ¯C	2 SCRs	TO-240AA
IXYS MCC94-24IO1B	1700 A	1840 A		Chassis Mount	104 A	2.4 kV	150 mA	Series Connection - All SCRs	1.5 V	180 A	-40 °C	125 ¯C	2 SCRs	Module	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 2.4 kV 180 A Series Connection - All SCRs Chassis Mount Module
