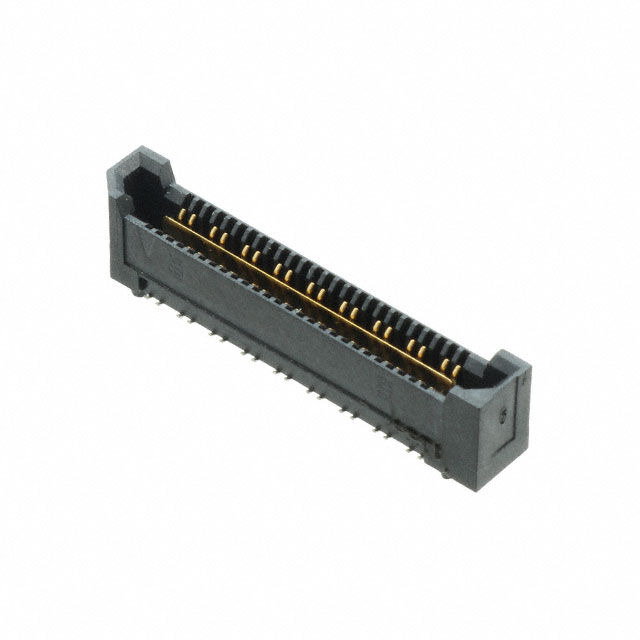

QRF8-018-05.0-L-D-DP-A

Active

Samtec Inc.

.8MM Q RATE SOCKET WITH EDGE RAT

Search across all available documentation for this part.

Active

Samtec Inc.

.8MM Q RATE SOCKET WITH EDGE RAT

Technical Specifications

Parameters and characteristics for this part

Specification	QRF8-018-05.0-L-D-DP-A

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Mated Stacking Heights	12 mm, 7 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	36
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Mated Stacking Heights	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. QRF8-018-05.0-S-D-DP-A	Gold	7 mm 10 mm 12 mm	Differential Pair Array Female	Surface Mount	0.8 mm	0.031 in	5 mm	0.197 in	36	2
Samtec Inc. QRF8-018-05.0-L-D-DP-A	Gold	7 mm 10 mm 12 mm	Differential Pair Array Female	Surface Mount	0.8 mm	0.031 in	5 mm	0.197 in	36	2	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position Connector Differential Pair Array, Female Surface Mount Gold
