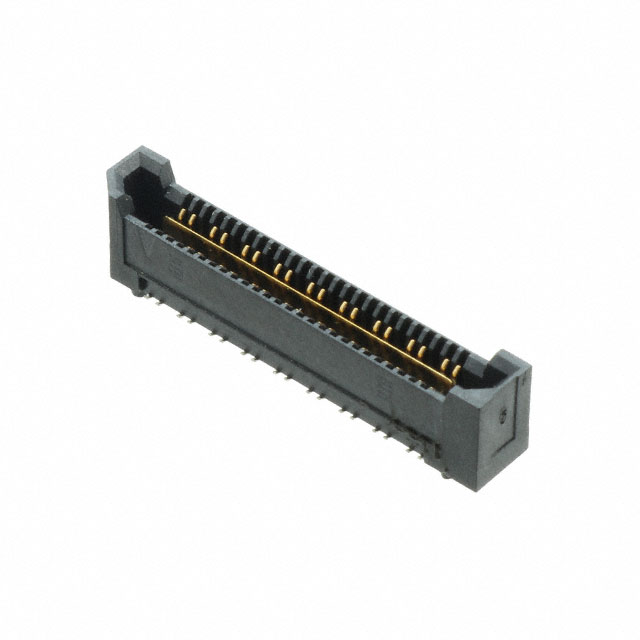

QRF8-018-05.0-S-D-DP-A

Active

Samtec Inc.

.8MM Q RATE SOCKET WITH EDGE RAT

Search across all available documentation for this part.

Active

Samtec Inc.

.8MM Q RATE SOCKET WITH EDGE RAT

Technical Specifications

Parameters and characteristics for this part

Specification	QRF8-018-05.0-S-D-DP-A

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Mated Stacking Heights	12 mm, 7 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	36
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Mated Stacking Heights	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. QRF8-018-05.0-S-D-DP-A	Gold	7 mm 10 mm 12 mm	Differential Pair Array Female	Surface Mount	0.8 mm	0.031 in	5 mm	0.197 in	36	2
Samtec Inc. QRF8-018-05.0-L-D-DP-A	Gold	7 mm 10 mm 12 mm	Differential Pair Array Female	Surface Mount	0.8 mm	0.031 in	5 mm	0.197 in	36	2	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.89

General part information

36 Position Connector Differential Pair Array, Female Surface Mount Gold

Technical documentation and resources

No documents available
