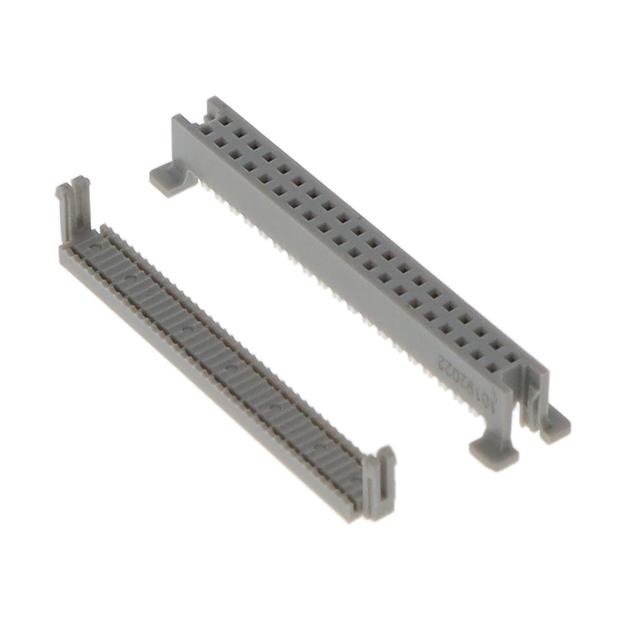

45140-000030

Active

3M (TC)

40P SKT NO CENTER POL 30AU

Search across all available documentation for this part.

Active

3M (TC)

40P SKT NO CENTER POL 30AU

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Wire Type	Mounting Type	Connector Type	Contact Type	Contact Finish	Features	Pitch [x]	Pitch [x]	Number of Positions	Row Spacing	Row Spacing	Number of Rows	Cable Termination	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
3M (TC) 45140-020000	Friction Lock	Ribbon Cable	Free Hanging (In-Line)	Receptacle	Female Socket	Gold	Feed Through Polarizing Key	0.05 in	1.27 mm	40	1.27 mm	0.05 in	2	IDC	30 AWG	Flash
3M (TC) 45140-000030		Ribbon Cable	Free Hanging (In-Line)	Receptacle	Female Socket	Gold	Feed Through	0.05 in	1.27 mm	40	1.27 mm	0.05 in	2	IDC	30 AWG		0.76 Ám	30 Áin
3M (TC) 45140-000000		Ribbon Cable	Free Hanging (In-Line)	Receptacle	Female Socket	Gold	Feed Through	0.05 in	1.27 mm	40	1.27 mm	0.05 in	2	IDC	30 AWG	Flash
3M (TC) 45140-020030	Friction Lock	Ribbon Cable	Free Hanging (In-Line)	Receptacle	Female Socket	Gold	Feed Through Polarizing Key	0.05 in	1.27 mm	40	1.27 mm	0.05 in	2	IDC	30 AWG		0.76 Ám	30 Áin
3M (TC) 45140-010000		Ribbon Cable	Free Hanging (In-Line)	Receptacle	Female Socket	Gold	Feed Through Polarizing Key	0.05 in	1.27 mm	40	1.27 mm	0.05 in	2	IDC	30 AWG	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Rectangular Receptacle Connector IDC Gold 30 AWG
