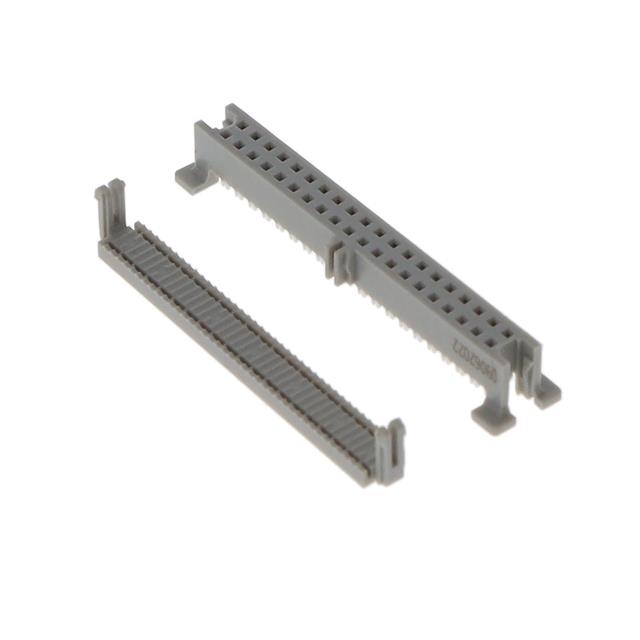

45140-020000
Active3M (TC)
40P SKT CP AND FL AU FLASH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
45140-020000
Active3M (TC)
40P SKT CP AND FL AU FLASH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 45140-020000 |
|---|---|
| Cable Termination | IDC |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Features | Polarizing Key, Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
| Wire Gauge | 30 AWG |
| Wire Type | Ribbon Cable |
45140 Series
| Part | Fastening Type | Wire Type | Mounting Type | Connector Type | Contact Type | Contact Finish | Features | Pitch [x] | Pitch [x] | Number of Positions | Row Spacing | Row Spacing | Number of Rows | Cable Termination | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Friction Lock | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through Polarizing Key | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | Flash | ||
3M (TC) | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | 0.76 Ám | 30 Áin | ||
3M (TC) | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | Flash | |||
3M (TC) | Friction Lock | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through Polarizing Key | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | 0.76 Ám | 30 Áin | |
3M (TC) | Ribbon Cable | Free Hanging (In-Line) | Receptacle | Female Socket | Gold | Feed Through Polarizing Key | 0.05 in | 1.27 mm | 40 | 1.27 mm | 0.05 in | 2 | IDC | 30 AWG | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.41 | |
| 10 | $ 7.61 | |||
| 25 | $ 7.19 | |||
| 50 | $ 7.01 | |||
| 126 | $ 6.66 | |||
| 252 | $ 5.96 | |||
| 504 | $ 5.61 | |||
| 1008 | $ 4.91 | |||
Description
General part information
45140 Series
40 Position Rectangular Receptacle Connector IDC Gold 30 AWG
