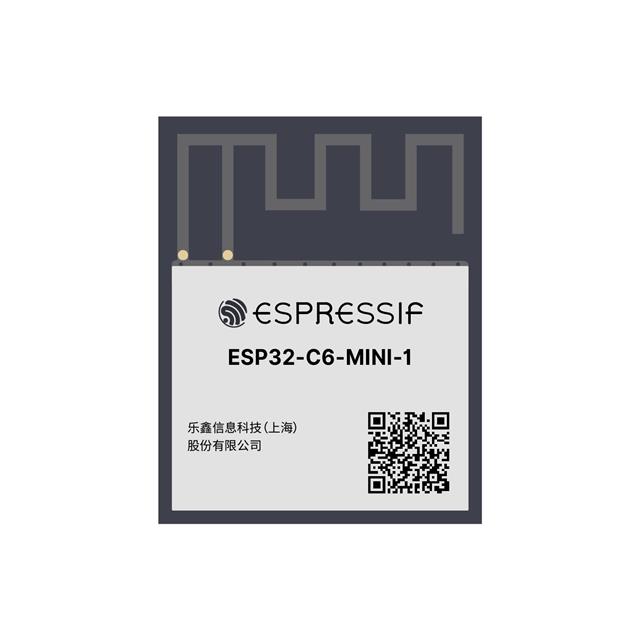

ESP32-C6-MINI-1-H4

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Deep-Dive with AI

Search across all available documentation for this part.

ESP32-C6-MINI-1-H4

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.57
	Digi-Reel®	1	$ 2.57
	Tape & Reel (TR)	650	$ 2.57

Description

General part information

ESP32-C6 Series

802.15.4, Bluetooth, WiFi 802.11ax, Bluetooth v5.0, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-C6-MINI-1-H4	ESP32-C6 Series

Antenna Type	PCB Trace	PCB Trace
Current - Receiving [Max]	82 mA	82 mA
Current - Receiving [Min]	71 mA	71 mA
Current - Transmitting [Max]	354 mA	354 mA
Current - Transmitting [Min]	82 mA	82 mA
Data Rate	150 Mbps	150 Mbps
Data Rate (Max)	-	250 kbps
For Use With/Related Products	-	ESP32-C6-WROOM-1, ESP32-C6-MINI-1
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 GHz
Frequency	-	2.412 GHz
GPIO	-	22 - 30
Memory Size	32 Gbit	32 Gbit
Modulation	CCK, O-QPSK, 16-QAM, OFDM, DSSS	CCK, O-QPSK, 16-QAM, OFDM, DSSS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	53-SMD Module	40-VFQFN Exposed Pad, 32-VFQFN Exposed Pad, 53-SMD Module, 28-SMD Module
Power - Output	21 dBm	21 dBm
Protocol	Bluetooth v5.0, 802.11ax, Zigbee®	Zigbee®, Thread, Bluetooth v5.0, 802.11ax
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Sensitivity	-106 dBm	-106 dBm
Serial Interfaces	SPI, PCM, UART, USB, I2C, PWM, GPIO, SDIO, JTAG, I2S, IrDA	SPI, PCM, UART, USB, I2C, PWM, GPIO, SDIO, JTAG, I2S, IrDA
Supplied Contents	-	Board(s)
Supplier Device Package	-	40-QFN (5x5), 32-QFN (5x5)
Type	-	TxRx Only, 802.11 b/g/n/ax (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), 802.15.4 (Thread, Zigbee®), Transceiver
Utilized IC / Part	-	ESP32-C6
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

ESP32-C6 Series

IC RF TXRX BLE 40QFN

Part	Type	Sensitivity	RF Family/Standard	Current - Receiving [Min]	Current - Receiving [Max]	Package / Case	Serial Interfaces	Protocol	Current - Transmitting [Min]	Current - Transmitting [Max]	Modulation	Power - Output	GPIO	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate (Max)	Supplier Device Package	Frequency [Max]	Frequency [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Frequency	For Use With/Related Products	Supplied Contents	Memory Size	Data Rate	Antenna Type	Utilized IC / Part
Espressif Systems ESP32-C6	TxRx Only	-106 dBm	Bluetooth, WiFi	71 mA	82 mA	40-VFQFN Exposed Pad	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm	30	105 °C	-40 °C	250 kbps	40-QFN (5x5)	2.484 GHz	2.412 GHz	3.6 V	3 V	Surface Mount
Espressif Systems ESP32-C6-DEVKITC-1-N8	802.11 b/g/n/ax (Wi-Fi, WiFi, WLAN), 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver																						2.4 GHz	ESP32-C6-WROOM-1	Board(s)
Espressif Systems ESP32-C6FH4	TxRx Only	-106 dBm	Bluetooth, WiFi	71 mA	82 mA	32-VFQFN Exposed Pad	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm	22	105 °C	-40 °C	250 kbps	32-QFN (5x5)	2.484 GHz	2.412 GHz	3.6 V	3 V	Surface Mount				32 Gbit
Espressif Systems ESP32-C6-MINI-1-N4		-106 dBm	802.15.4, Bluetooth, WiFi	71 mA	82 mA	53-SMD Module	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	802.11ax, Bluetooth v5.0, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm		85 °C	-40 °C					3.6 V	3 V	Surface Mount	2.4 GHz			32 Gbit	150 Mbps	PCB Trace
Espressif Systems ESP32-C6-WROOM-1-N4			802.15.4, Bluetooth, WiFi			28-SMD Module	GPIO, I2C, I2S, PWM, SPI, UART	Bluetooth v5.0, Zigbee®														Surface Mount	2.4 GHz			32 Gbit		PCB Trace	ESP32-C6
Espressif Systems ESP32-C6-MINI-1-H4		-106 dBm	802.15.4, Bluetooth, WiFi	71 mA	82 mA	53-SMD Module	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	802.11ax, Bluetooth v5.0, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm		105 °C	-40 °C					3.6 V	3 V	Surface Mount	2.4 GHz			32 Gbit	150 Mbps	PCB Trace
Espressif Systems ESP32-C6-DEVKITM-1-N4	Bluetooth® 5.x (BLE), Transceiver																						2.4 GHz	ESP32-C6-MINI-1	Board(s)
