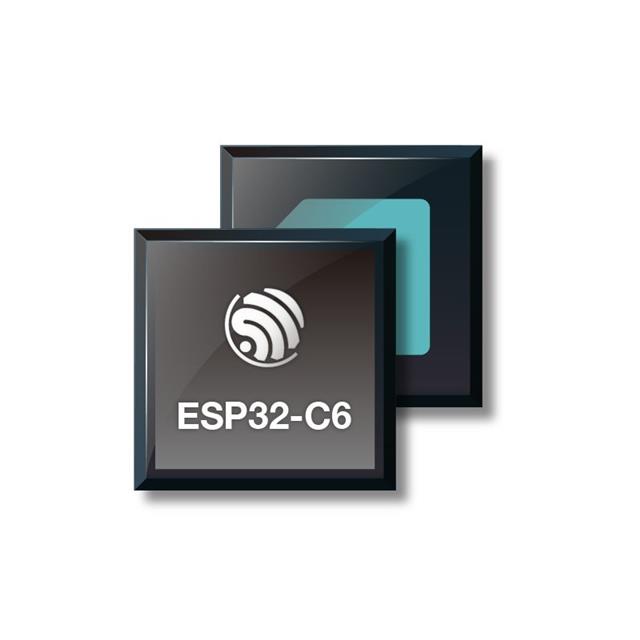

ESP32-C6

Active

Espressif Systems

IC RF TXRX BLE 40QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESP32-C6

Active

Espressif Systems

IC RF TXRX BLE 40QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.85
	Digi-Reel®	1	$ 1.85
	Tape & Reel (TR)	5000	$ 1.85

Description

General part information

ESP32-C6 Series

IC RF TxRx Only Bluetooth, WiFi Bluetooth v5.0, Thread, Zigbee® 2.412GHz ~ 2.484GHz 40-VFQFN Exposed Pad

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-C6	ESP32-C6 Series

Antenna Type	-	PCB Trace
Current - Receiving [Max]	82 mA	82 mA
Current - Receiving [Min]	71 mA	71 mA
Current - Transmitting [Max]	354 mA	354 mA
Current - Transmitting [Min]	82 mA	82 mA
Data Rate	-	150 Mbps
Data Rate (Max)	250 kbps	250 kbps
For Use With/Related Products	-	ESP32-C6-WROOM-1, ESP32-C6-MINI-1
Frequency	-	2.4 GHz
Frequency [Max]	2.484 GHz	2.484 GHz
Frequency [Min]	2.412 GHz	2.412 GHz
GPIO	30	22 - 30
Memory Size	-	32 Gbit
Modulation	CCK, O-QPSK, 16-QAM, OFDM, DSSS	CCK, O-QPSK, 16-QAM, OFDM, DSSS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	40-VFQFN Exposed Pad	40-VFQFN Exposed Pad, 32-VFQFN Exposed Pad, 53-SMD Module, 28-SMD Module
Power - Output	21 dBm	21 dBm
Protocol	Zigbee®, Thread, Bluetooth v5.0	Zigbee®, Thread, Bluetooth v5.0, 802.11ax
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth, 802.15.4
Sensitivity	-106 dBm	-106 dBm
Serial Interfaces	SPI, PCM, UART, USB, I2C, PWM, GPIO, SDIO, JTAG, I2S, IrDA	SPI, PCM, UART, USB, I2C, PWM, GPIO, SDIO, JTAG, I2S, IrDA
Supplied Contents	-	Board(s)
Supplier Device Package	40-QFN (5x5)	40-QFN (5x5), 32-QFN (5x5)
Type	TxRx Only	TxRx Only, 802.11 b/g/n/ax (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), 802.15.4 (Thread, Zigbee®), Transceiver
Utilized IC / Part	-	ESP32-C6
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

ESP32-C6 Series

IC RF TXRX BLE 40QFN

Part	Type	Sensitivity	RF Family/Standard	Current - Receiving [Min]	Current - Receiving [Max]	Package / Case	Serial Interfaces	Protocol	Current - Transmitting [Min]	Current - Transmitting [Max]	Modulation	Power - Output	GPIO	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate (Max)	Supplier Device Package	Frequency [Max]	Frequency [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Frequency	For Use With/Related Products	Supplied Contents	Memory Size	Data Rate	Antenna Type	Utilized IC / Part
Espressif Systems ESP32-C6	TxRx Only	-106 dBm	Bluetooth, WiFi	71 mA	82 mA	40-VFQFN Exposed Pad	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm	30	105 °C	-40 °C	250 kbps	40-QFN (5x5)	2.484 GHz	2.412 GHz	3.6 V	3 V	Surface Mount
Espressif Systems ESP32-C6-DEVKITC-1-N8	802.11 b/g/n/ax (Wi-Fi, WiFi, WLAN), 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver																						2.4 GHz	ESP32-C6-WROOM-1	Board(s)
Espressif Systems ESP32-C6FH4	TxRx Only	-106 dBm	Bluetooth, WiFi	71 mA	82 mA	32-VFQFN Exposed Pad	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm	22	105 °C	-40 °C	250 kbps	32-QFN (5x5)	2.484 GHz	2.412 GHz	3.6 V	3 V	Surface Mount				32 Gbit
Espressif Systems ESP32-C6-MINI-1-N4		-106 dBm	802.15.4, Bluetooth, WiFi	71 mA	82 mA	53-SMD Module	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	802.11ax, Bluetooth v5.0, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm		85 °C	-40 °C					3.6 V	3 V	Surface Mount	2.4 GHz			32 Gbit	150 Mbps	PCB Trace
Espressif Systems ESP32-C6-WROOM-1-N4			802.15.4, Bluetooth, WiFi			28-SMD Module	GPIO, I2C, I2S, PWM, SPI, UART	Bluetooth v5.0, Zigbee®														Surface Mount	2.4 GHz			32 Gbit		PCB Trace	ESP32-C6
Espressif Systems ESP32-C6-MINI-1-H4		-106 dBm	802.15.4, Bluetooth, WiFi	71 mA	82 mA	53-SMD Module	GPIO, I2C, I2S, IrDA, JTAG, PCM, PWM, SDIO, SPI, UART, USB	802.11ax, Bluetooth v5.0, Zigbee®	82 mA	354 mA	16-QAM, CCK, DSSS, O-QPSK, OFDM	21 dBm		105 °C	-40 °C					3.6 V	3 V	Surface Mount	2.4 GHz			32 Gbit	150 Mbps	PCB Trace
Espressif Systems ESP32-C6-DEVKITM-1-N4	Bluetooth® 5.x (BLE), Transceiver																						2.4 GHz	ESP32-C6-MINI-1	Board(s)
