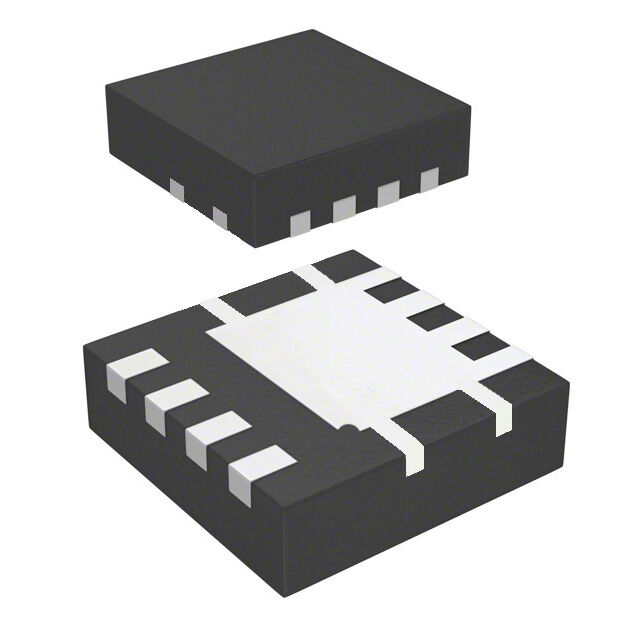

DMP3008SFGQ-7

Active

Diodes Inc

MOSFET, P-CH, 30V, 8.6A, POWERDI 3333 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

DMP3008SFGQ-7

Active

Diodes Inc

MOSFET, P-CH, 30V, 8.6A, POWERDI 3333 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMP3008SFGQ-7

Current - Continuous Drain (Id) @ 25°C	8.6 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	P-Channel
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	2230 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power Dissipation (Max) [Max]	900 mW
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	17 mOhm
Supplier Device Package	POWERDI3333-8
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.1 V

DMP3008SFGQ Series

NRND = Not Recommended for New Design

Part	Drain to Source Voltage (Vdss)	Package / Case	FET Type	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Grade	Qualification	Technology	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Power Dissipation (Max) [Max]	Supplier Device Package	Vgs(th) (Max) @ Id
Diodes Inc DMP3008SFGQ-7	30 V	8-PowerVDFN	P-Channel	Surface Mount	4.5 V 10 V	8.6 A	Automotive	AEC-Q101	MOSFET (Metal Oxide)	20 V	-55 °C	150 °C	2230 pF	17 mOhm	900 mW	POWERDI3333-8	2.1 V
Diodes Inc DMP3008SFG-13	30 V	8-PowerVDFN	P-Channel	Surface Mount	4.5 V 10 V	8.6 A			MOSFET (Metal Oxide)	20 V	-55 °C	150 °C	2230 pF	17 mOhm	900 mW	POWERDI3333-8	2.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.45
		10	$ 1.02
		100	$ 0.77
		500	$ 0.61
		1000	$ 0.56
	Digi-Reel®	1	$ 1.45
		10	$ 1.02
		100	$ 0.77
		500	$ 0.61
		1000	$ 0.56
	Tape & Reel (TR)	2000	$ 0.46
Newark	Each (Supplied on Cut Tape)	1	$ 1.73
		10	$ 1.29
		25	$ 1.21
		50	$ 1.12
		100	$ 1.04
		250	$ 0.95
		500	$ 0.87
		1000	$ 0.81

Description

General part information

DMP3008SFGQ Series

This new generation 30V P Channel enhancement mode MOSFET has been designed to minimise RDS(on)and yet maintain superior switching performance. This device is ideally use Notebook battery power management and Loadswitch.

Documents

Technical documentation and resources

Datasheet

Recommended Soldering Techniques

Technical Document

Product Change Notice EN

Datasheet
