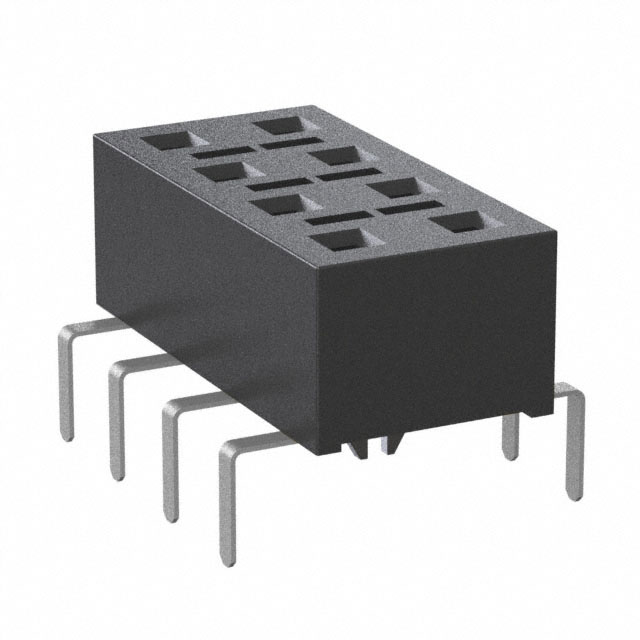

HLE-104-02-F-DV-PE-LC

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS COST-EFFECTIVE RELIABLE SOCKET, .100" (2.54 MM) PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLE-104-02-F-DV-PE-LC

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS COST-EFFECTIVE RELIABLE SOCKET, .100" (2.54 MM) PITCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLE-104-02-F-DV-PE-LC

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.5 mm
Insulation Height	0.138 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	400 VAC

HLE-136 Series

Headers & Wire Housings Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Voltage Rating	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish - Post	Contact Material	Contact Shape	Number of Rows	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post
Samtec Inc. HLE-120-02-F-DV-A-P	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	40	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2	Board Guide Pick and Place	3 µin	0.076 µm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-117-02-G-DV-A-P-TR	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	34	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Gold	Beryllium Copper	Square	2	Board Guide Pick and Place	20 µin	0.51 µm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm
Samtec Inc. HLE-150-02-L-DV-BE	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	100	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle Bottom Entry	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-108-02-L-DV	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in		400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm			16
Samtec Inc. HLE-107-02-G-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	14	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Gold	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm		0.09 "	2.29 mm
Samtec Inc. HLE-113-02-L-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	26	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm
Samtec Inc. HLE-107-02-G-DV-LC-P-TR	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	14	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Gold	Beryllium Copper	Square	2	Board Lock Pick and Place	20 µin	0.51 µm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm
Samtec Inc. HLE-104-02-F-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	8	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		3 µin	0.076 µm	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm
Samtec Inc. HLE-125-02-L-DV-LC-P	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	50	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2	Board Lock Pick and Place	10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-104-02-S-DV-PE	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	8	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		30 Áin	0.76 Ám	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	56	$ 2.35
Sager	N/A	1	$ 2.14
		50	$ 1.79
		100	$ 1.52
		500	$ 1.25
		1000	$ 1.18
		2000	$ 1.02
		5000	$ 0.76
		10000	$ 0.58

Description

General part information

HLE-136 Series

Headers & Wire Housings Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch

Documents

Technical documentation and resources

Datasheet

Document
