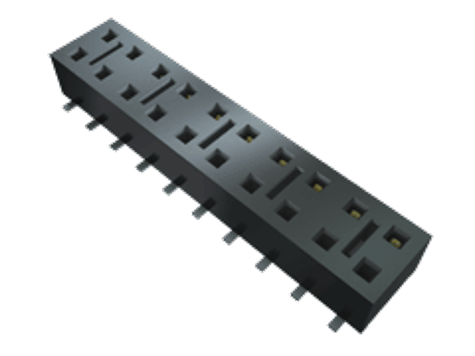

HLE-112-02-G-DV-BE-A-P-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS COST-EFFECTIVE RELIABLE SOCKET, .100" (2.54 MM) PITCH

HLE-112-02-G-DV-BE-A-P-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS COST-EFFECTIVE RELIABLE SOCKET, .100" (2.54 MM) PITCH

Description Specifications Series Pricing CAD Documents

Description

General part information

HLE Series

HEADERS & WIRE HOUSINGS COST-EFFECTIVE RELIABLE SOCKET, .100" (2.54 MM) PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	HLE-112-02-G-DV-BE-A-P-TR

Connector Type	Bottom Entry, Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	20 Ąin
Contact Type	Female Socket
Current Rating (Per Contact)	4.1 A
Fastening Type	Push-Pull
Features	Board Guide, Pick and Place
Insulation Color	Black
Insulation Height	0.144 in
Mounting Type	Surface Mount
Number of Positions	24 pos
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Style	Board
Termination	Solder
Voltage Rating	400 V

HLE Series

...

Part	Mounting Type	Connector Type	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Voltage Rating	Contact Finish - Mating	Termination	Pitch - Mating	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Height	Row Spacing - Mating	Style	Contact Finish Thickness - Mating	Number of Positions	Contact Type	Fastening Type	Insulation Material	Contact Material	Contact Shape	Features	Contact Length - Post	Contact Finish Thickness - Post
Samtec Inc. HLE-150-02-L-DV-BE	Surface Mount	Bottom Entry Receptacle	2	All	Tin	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	10 µin	100	Female Socket	Push-Pull	Liquid Crystal Polymer (LCP)	Beryllium Copper	Square
Samtec Inc. HLE-116-02-S-DV-A-P-TR	Surface Mount	Receptacle	2	All	Tin	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	30 µin	32	Female Socket	Push-Pull				Board Guide Pick and Place
Samtec Inc. HLE-104-02-F-DV-PE-LC	Through Hole	Pass Through Receptacle	2	All	Tin	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.138 in	0.1 in	Board	3 µin	8	Female Socket	Push-Pull	Liquid Crystal Polymer (LCP)	Beryllium Copper	Square	Board Lock	0.09 in
Samtec Inc. HLE-112-02-G-DV-BE-A-P-TR	Surface Mount	Bottom Entry Receptacle	2	All	Gold	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	20 Ąin	24 pos	Female Socket	Push-Pull				Board Guide Pick and Place
Samtec Inc. HLE-106-02-F-DV-BE-A	Surface Mount	Bottom Entry Receptacle	2	All	Tin	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	3 µin	12	Female Socket	Push-Pull				Board Guide
Samtec Inc. HLE-110-02-H-DV	Surface Mount	Receptacle	2	All	Gold	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	30 µin	20	Female Socket	Push-Pull	Liquid Crystal Polymer (LCP)	Beryllium Copper	Square			3 µin
Samtec Inc. HLE-109-02-L-DV-A-K	Surface Mount	Receptacle	2	All	Tin	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	10 µin	18	Female Socket	Push-Pull				Board Guide Pick and Place
Samtec Inc. HLE-117-02-G-DV-K-TR	Surface Mount	Receptacle	2	All	Gold	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	20 Ąin	34	Female Socket	Push-Pull				Pick and Place
Samtec Inc. HLE-115-02-S-DV-A-K	Surface Mount	Receptacle	2	All	Tin	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	30 µin	30	Female Socket	Push-Pull				Board Guide Pick and Place
Samtec Inc. HLE-120-02-S-DV-A-TR	Surface Mount	Receptacle	2	All	Tin	Black	400 V	Gold	Solder	0.1 in	4.1 A	125 °C	-55 °C	0.144 in	0.1 in	Board	30 µin	40	Female Socket	Push-Pull	Liquid Crystal Polymer (LCP)	Beryllium Copper	Square	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
