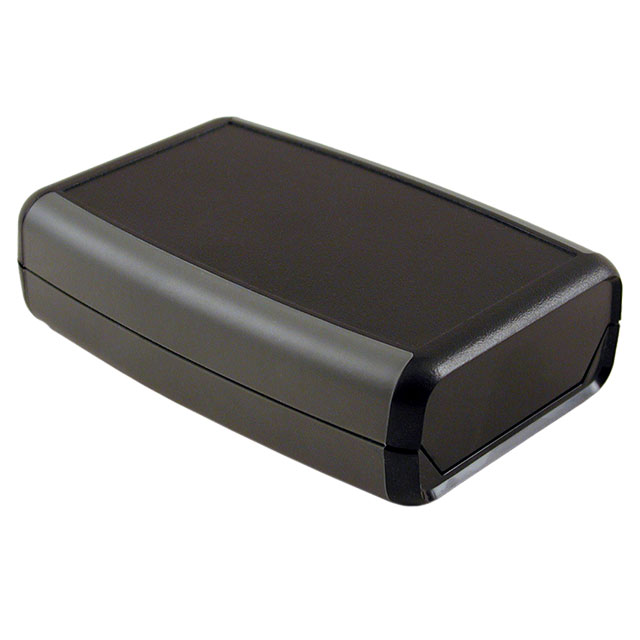

1553WCBK

Active

Hammond Manufacturing

BOX ABS BLACK 4.62"L X 3.11"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1553WB Drawing

1553WCBK

Active

Hammond Manufacturing

BOX ABS BLACK 4.62"L X 3.11"W

Deep-Dive with AI

Documents1553WB Drawing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1553WCBK

Color	Black
Container Type	Box
Features	PCB Supports, Sealing Gasket
Height [diameter]	1.26 in
Height [diameter]	32 mm
Material	ABS
Material Flammability Rating	UL94 V-0
Ratings	IP65
Size / Dimension [x]	117.22 mm
Size / Dimension [x]	4.615 "
Size / Dimension [y]	3.109 in
Size / Dimension [y]	78.97 mm
Thickness	3 mm
Thickness	0.118 in

1553 Series

Part	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Material	Color	Material Flammability Rating	Height [z]	Height [z]	Design	Area (L x W)	Area (L x W)	Height [diameter]	Height [diameter]	Proto Board Type	Pitch [x]	Pitch [x]	Circuit Pattern	Plating	Hole Diameter	Hole Diameter
Hammond Manufacturing 1553TTBKBAT	0.09 in	2.29 mm	20.4 in²	132 cm²	9V and AA Battery Compartment Flame Retardant PCB Supports	3.15 in	6.496 in	80 mm	165 mm	Box	ABS	Black	UL94 V-0	27.94 mm	1.1 in
Hammond Manufacturing 1553AAGY	0.079 in	2.01 mm			PCB Supports	1.972 in	2.953 in	50.08 mm	75 mm	Box	ABS	Gray	UL94 HB	16.99 mm	0.669 in	Hand Held Split Sides	37.5 cm²	5.81 in²
Hammond Manufacturing 1553DRDBKBAT	0.108 in	2.74 mm			9V and AA Battery Compartment PCB Supports	3.504 in	5.797 "	89 mm	147.24 mm	Box	ABS	Red	UL94 HB	25 mm	0.984 in	Hand Held Split Sides	131 cm²	20.3 in²
Hammond Manufacturing 1553CGY	0.098 in	2.49 mm			PCB Supports	3.109 in	4.615 "	78.97 mm	117.22 mm	Box	ABS	Gray	UL94 HB			Hand Held Split Sides			1.26 in	32 mm
Hammond Manufacturing 1553DBPCB						2.85 "	4.18 "	72.4 mm	106.2 mm		Acrylonitrile Butadiene Styrene (ABS)										Breadboard Prepunched Insulating	2.54 mm	0.1 in	2 Hole Pad (Single Side)	Non-Plated Through Hole (NPTH)	0.042 " (inches)	1.07 mm
Hammond Manufacturing 1553CGYBAT	0.098 in	2.49 mm			9V and AA Battery Compartment PCB Supports	3.109 in	4.615 "	78.97 mm	117.22 mm	Box	ABS	Gray	UL94 HB			Hand Held Split Sides			1.26 in	32 mm
Hammond Manufacturing 1553DTBUBK	0.108 in	2.74 mm			PCB Supports	3.504 in	5.797 "	89 mm	147.24 mm	Box	ABS	Translucent - Blue	UL94 HB	25 mm	0.984 in	Hand Held Split Sides	131 cm²	20.3 in²
Hammond Manufacturing 1553TBKBAT	0.108 in	2.74 mm			9V and AA Battery Compartment Flame Retardant PCB Supports	3.937 in	8.268 in	100 mm	210 mm	Box	ABS	Black	UL94 V-0				210 cm²	32.5 in²	1.26 in	32 mm
Hammond Manufacturing 1553DYLBK	0.108 in	2.74 mm			PCB Supports	3.504 in	5.797 "	89 mm	147.24 mm	Box	ABS	Yellow	UL94 HB	25 mm	0.984 in	Hand Held Split Sides	131 cm²	20.3 in²
Hammond Manufacturing 1553TGY	0.108 in	2.74 mm			Flame Retardant PCB Supports	3.937 in	8.268 in	100 mm	210 mm	Box	ABS	Gray	UL94 V-0				210 cm²	32.5 in²	1.26 in	32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.58
		5	$ 16.55
		10	$ 15.51
		25	$ 14.48
		50	$ 14.22
		100	$ 13.96
		250	$ 13.76
		500	$ 13.45

Description

General part information

1553 Series

Box ABS Black Hand Held, Split Sides and End Panel(s) 4.615" L x 3.109" W (117.22mm x 78.97mm) X 1.260" (32.00mm)

Documents

Technical documentation and resources

1553WB Drawing

Datasheet
