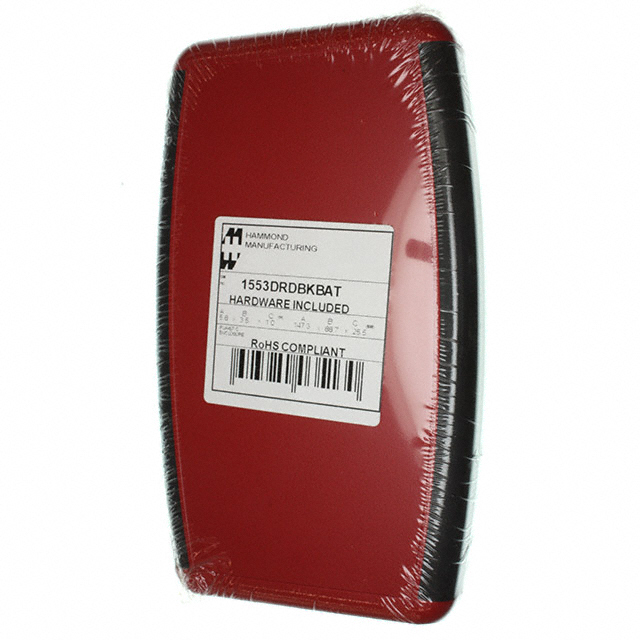

BOX ABS RED 5.8"L X 3.50"W

1553DRDBKBAT

Active

Hammond Manufacturing

BOX ABS RED 5.8"L X 3.50"W

Description Specifications Series Pricing CAD Documents

Description

General part information

1553 Series

Box ABS Red Hand Held, Split Sides 5.797" L x 3.504" W (147.24mm x 89.00mm) X 0.984" (25.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	1553DRDBKBAT

Area (L x W)	20.3 in²
Color	Red
Container Type	Box
Design	Split Sides, Hand Held
Features	9V and AA, Battery Compartment, PCB Supports
Height	0.984 in
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension Length	5.797 in
Size / Dimension Width	3.504 in
Thickness	0.108 in

1553 Series

Part	Features	Area (L x W)	Color	Thickness	Material	Container Type	Design	Height	Size / Dimension Length	Size / Dimension Width	Material Flammability Rating	Proto Board Type	Plating	Circuit Pattern	Circuit Pattern Hole Count	Hole Diameter	Pitch
Hammond Manufacturing 1553TTBKBAT	9V and AA Battery Compartment Flame Retardant PCB Supports	20.4 in²	Black	0.09 in	ABS	Box	End Panel(s) Hand Held Split Sides	1.1 in	6.496 in	3.15 in	UL94 V-0
Hammond Manufacturing 1553AAGY	PCB Supports	5.81 in²	Gray	0.079 in	ABS	Box	Hand Held Split Sides	0.669 in	2.953 in	1.972 in	UL94 HB
Hammond Manufacturing 1553DRDBKBAT	9V and AA Battery Compartment PCB Supports	20.3 in²	Red	0.108 in	ABS	Box	Hand Held Split Sides	0.984 in	5.797 in	3.504 in	UL94 HB
Hammond Manufacturing 1553CGY	PCB Supports	14.4 in²	Gray	0.098 in	ABS	Box	Hand Held Split Sides	1.26 in	4.615 in	3.109 in	UL94 HB
Hammond Manufacturing 1553DBPCB					Acrylonitrile Butadiene Styrene (ABS)				4.18 in	72.39 mm		Breadboard Prepunched Insulating	Non-Plated Through Hole (NPTH)	Hole Pad (Single Side)	2	0.042 in	0.1 in
Hammond Manufacturing 1553BYLBK	PCB Supports	14.4 in²	Yellow	0.108 in	ABS	Box	Hand Held Split Sides	0.945 in	4.615 in	3.109 in	UL94 HB
Hammond Manufacturing 1553DGY	PCB Supports	20.3 in²	Gray	0.108 in	ABS	Box	Hand Held Split Sides	0.984 in	5.797 in	3.504 in	UL94 HB
Hammond Manufacturing 1553DRDBK	PCB Supports	20.3 in²	Red	0.108 in	ABS	Box	Hand Held Split Sides	0.984 in	5.797 in	3.504 in	UL94 HB
Hammond Manufacturing 1553DBK	PCB Supports	20.3 in²	Black	0.108 in	ABS	Box	Hand Held Split Sides	0.984 in	5.797 in	3.504 in	UL94 HB
Hammond Manufacturing 1553CGYBAT	9V and AA Battery Compartment PCB Supports	14.4 in²	Gray	0.098 in	ABS	Box	Hand Held Split Sides	1.26 in	4.615 in	3.109 in	UL94 HB
