02S118-K00S3

Active

Rosenberger

ADAPT2.92MM PLUG - MINI SMP JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT2.92MM PLUG - MINI SMP JACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02S118-K00S3	02S118 Series

Accessory Type	-	Calibration Adapter
Adapter Series	Mini to RPC-2.92, SMP	Mini to RPC-2.92, SMP
Adapter Type	Plug to Jack	Plug to Jack
Body Finish	Gold; Passivated	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert To (Adapter End)	SMP Mini Jack, Female Socket	SMP Mini Jack, Female Socket
Dielectric Material	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
For Use With/Related Products	-	Network Analyzer
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Specifications	-	Mini Plug, SMP, 2.92 Plug
Style	Straight	Straight
Type	-	Specialized

ADAPT2.92MM PLUG - MINI SMP JACK

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Center Contact Material	Body Finish	Body Material	Mounting Type	Adapter Type	Dielectric Material	Adapter Series	Impedance	Style	Conversion Type	Center Contact Plating	Convert To (Adapter End)	Frequency - Max [Max]	Convert From (Adapter End)	Accessory Type	Specifications	For Use With/Related Products	Type
Rosenberger 02S118-K00S3	85 °C	-40 °C	Snap-On, Threaded	Beryllium Copper	Gold; Passivated	Beryllium Copper, Stainless Steel	Free Hanging (In-Line)	Plug to Jack	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Mini to RPC-2.92, SMP	50 Ohms	Straight	Between Series	Gold	Female Socket, SMP Mini Jack	40 GHz	2.92 mm
Rosenberger 02S118-S20D3																		Calibration Adapter	2.92 Plug, Mini Plug, SMP	Network Analyzer	Specialized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

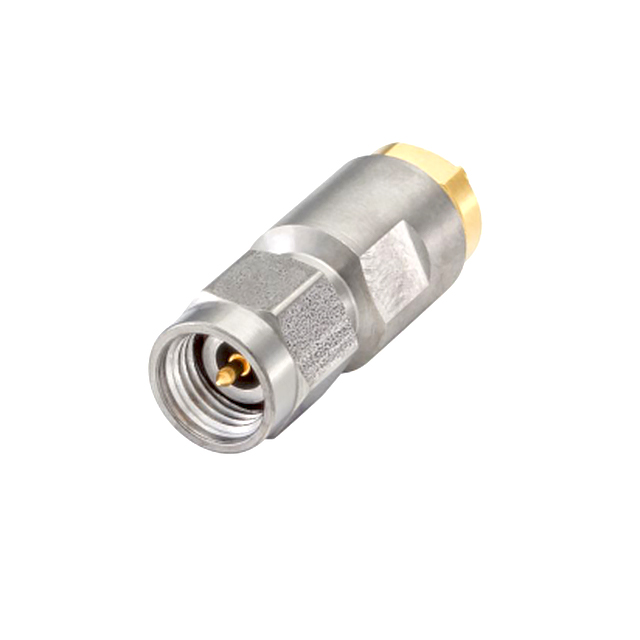

Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To SMP Mini Jack, Female Socket 50 Ohms
