02S118-S20D3

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 988.30

General part information

Specialized Calibration Adapter for use with Network Analyzer

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	02S118-S20D3	02S118 Series

Accessory Type	Calibration Adapter	Calibration Adapter
Adapter Series	-	Mini to RPC-2.92, SMP
Adapter Type	-	Plug to Jack
Body Finish	-	Gold; Passivated
Body Material	-	Beryllium Copper, Stainless Steel
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Conversion Type	-	Between Series
Convert From (Adapter End)	-	2.92 mm
Convert To (Adapter End)	-	SMP Mini Jack, Female Socket
Dielectric Material	-	Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Fastening Type	-	Threaded, Snap-On
For Use With/Related Products	Network Analyzer	Network Analyzer
Frequency - Max	-	40 GHz
Impedance	-	50 Ohms
Mounting Type	-	Free Hanging (In-Line)
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Specifications	Mini Plug, SMP, 2.92 Plug	Mini Plug, SMP, 2.92 Plug
Style	-	Straight
Type	Specialized	Specialized

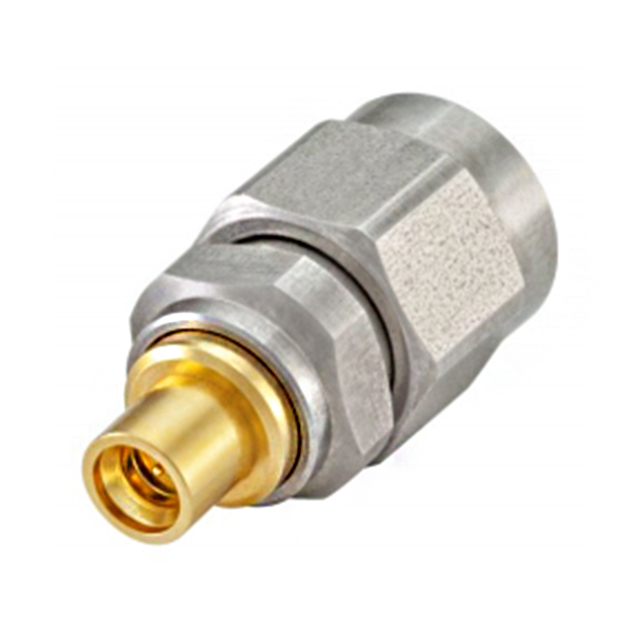

ADAPT2.92MM PLUG - MINI SMP JACK

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Center Contact Material	Body Finish	Body Material	Mounting Type	Adapter Type	Dielectric Material	Adapter Series	Impedance	Style	Conversion Type	Center Contact Plating	Convert To (Adapter End)	Frequency - Max [Max]	Convert From (Adapter End)	Accessory Type	Specifications	For Use With/Related Products	Type
Rosenberger 02S118-K00S3	85 °C	-40 °C	Snap-On, Threaded	Beryllium Copper	Gold; Passivated	Beryllium Copper, Stainless Steel	Free Hanging (In-Line)	Plug to Jack	Polystyrene (PS), Polytetrafluoroethylene (PTFE)	Mini to RPC-2.92, SMP	50 Ohms	Straight	Between Series	Gold	Female Socket, SMP Mini Jack	40 GHz	2.92 mm
Rosenberger 02S118-S20D3																		Calibration Adapter	2.92 Plug, Mini Plug, SMP	Network Analyzer	Specialized
