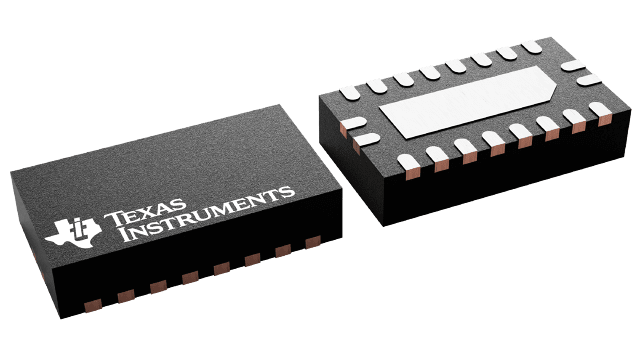

LSF0108RKSR
ActiveTexas Instruments
OCTAL BIDIRECTIONAL MULTI-VOLTAGE-LEVEL TRANSLATOR 20-VQFN -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
LSF0108RKSR
ActiveTexas Instruments
OCTAL BIDIRECTIONAL MULTI-VOLTAGE-LEVEL TRANSLATOR 20-VQFN -40 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LSF0108RKSR | LSF0108 Series |
|---|---|---|
| Channel Type | Bidirectional | Bidirectional |
| Channels per Circuit [custom] | 8 | 8 |
| Data Rate | - | 100 MHz |
| Features | Auto-Direction Sensing | Auto-Direction Sensing |
| Grade | - | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull, Open Drain | Push-Pull, Open Drain |
| Package / Case | 20-VFQFN Exposed Pad | 20-TSSOP, 20-VFQFN Exposed Pad, 20-TFSOP (0.118 in, 3.00mm Width) |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Supplier Device Package | 20-VQFN (4.5x2.5) | 20-TSSOP, 20-VQFN (4.5x2.5), 20-VSSOP |
| Translator Type | Voltage Level | Voltage Level |
| Voltage - VCCA [Max] | 4.5 V | 4.5 V |
| Voltage - VCCA [Min] | 0.95 V | 0.95 V |
| Voltage - VCCB [Max] | 5.5 V | 5.5 V |
| Voltage - VCCB [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LSF0108 Series
Automotive eight-channel bidirectional multi-voltage-level translator
| Part | Mounting Type | Supplier Device Package | Translator Type | Output Type | Channels per Circuit [custom] | Voltage - VCCA [Min] | Voltage - VCCA [Max] | Grade | Channel Type | Features | Package / Case | Package / Case | Package / Case | Voltage - VCCB [Min] | Voltage - VCCB [Max] | Number of Circuits | Operating Temperature [Min] | Operating Temperature [Max] | Data Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Surface Mount | 20-TSSOP | Voltage Level | Open Drain, Push-Pull | 8 | 0.95 V | 4.5 V | Automotive | Bidirectional | Auto-Direction Sensing | 0.173 in | 4.4 mm | 20-TSSOP | 1.8 V | 5.5 V | 1 | -40 °C | 125 °C | ||
Texas Instruments LSF0108RKSRThe LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I 2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF capacitive load and up to 40-MHz up or down translation at 50 pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I 2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF capacitive load and up to 40-MHz up or down translation at 50 pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible. | Surface Mount | 20-VQFN (4.5x2.5) | Voltage Level | Open Drain, Push-Pull | 8 | 0.95 V | 4.5 V | Bidirectional | Auto-Direction Sensing | 20-VFQFN Exposed Pad | 1.8 V | 5.5 V | 1 | -40 °C | 125 °C | ||||
Texas Instruments LSF0108DGSRThe LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I 2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF capacitive load and up to 40-MHz up or down translation at 50 pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I 2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF capacitive load and up to 40-MHz up or down translation at 50 pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible. | Surface Mount | 20-VSSOP | Voltage Level | Open Drain, Push-Pull | 8 | 0.95 V | 4.5 V | Bidirectional | 20-TFSOP (0.118 in, 3.00mm Width) | 1.8 V | 5.5 V | 1 | -40 °C | 125 °C | 100 MHz | ||||
Texas Instruments LSF0108PWRThe LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I 2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF capacitive load and up to 40-MHz up or down translation at 50 pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible.
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I 2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF capacitive load and up to 40-MHz up or down translation at 50 pF capacitive load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible. | Surface Mount | 20-TSSOP | Voltage Level | Open Drain, Push-Pull | 8 | 0.95 V | 4.5 V | Bidirectional | Auto-Direction Sensing | 0.173 in | 4.4 mm | 20-TSSOP | 1.8 V | 5.5 V | 1 | -40 °C | 125 °C |
Description
General part information
LSF0108 Series
Automotive eight-channel bidirectional multi-voltage-level translator
