SM0125-064-ATH

Active

LICAP Technologies, Inc.

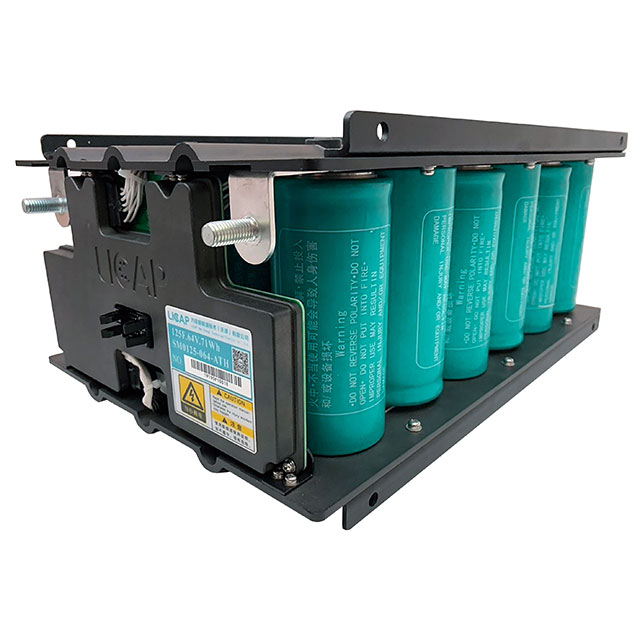

CAPACITOR 125F 0%/20% 64V CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM0125-064-ATH

Active

LICAP Technologies, Inc.

CAPACITOR 125F 0%/20% 64V CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1578.26

Description

General part information

- Series

125 F (EDLC) Supercapacitor 64 V Module 8mOhm 1500 Hrs @ 65°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SM0125-064-ATH	- Series

Capacitance	125 F	6 - 3000 F
ESR (Equivalent Series Resistance)	8 mOhms	0.28 - 200 mOhm
Height - Seated (Max)	-	2.421 - 7.087 in
Height - Seated (Max)	-	61.5 - 180 mm
Height - Seated (Max) [Max]	7.126 in	2.402 - 7.126 in
Height - Seated (Max) [Max]	181 mm	61 - 181 mm
Lifetime @ Temp.	1500 Hrs	1500 Hrs
Mounting Type	Chassis Mount	Chassis Mount, Through Hole
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-50 - -40 °C
Package / Case	Module	Module, Axial, Can - Screw Terminals, Radial, Can - Solder Lug - 4 Lead
Size / Dimension	-	31.85 - 61 mm
Size / Dimension	-	1.254 - 2.402 in
Size / Dimension [x]	16.28 in	6.496 - 16.457 in
Size / Dimension [x]	413.5 mm	165 - 418 mm
Size / Dimension [y]	10.866 in	1.732 - 10.866 in
Size / Dimension [y]	276 mm	44 - 276 mm
Termination	Screw Terminals	Screw Terminals, Solder Lug
Tolerance [Max]	20 %	20 %
Tolerance [Min]	0 %	0 %
Voltage - Rated	64 V	2.7 - 180 V
Voltage - Rated	-	18 V

- Series

CAPACITOR 6F 0%/20% 180V CHAS

Part	Capacitance	Lifetime @ Temp.	Termination	Package / Case	Mounting Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Tolerance [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated [diameter]
