SM0006-160-P

Active

LICAP Technologies, Inc.

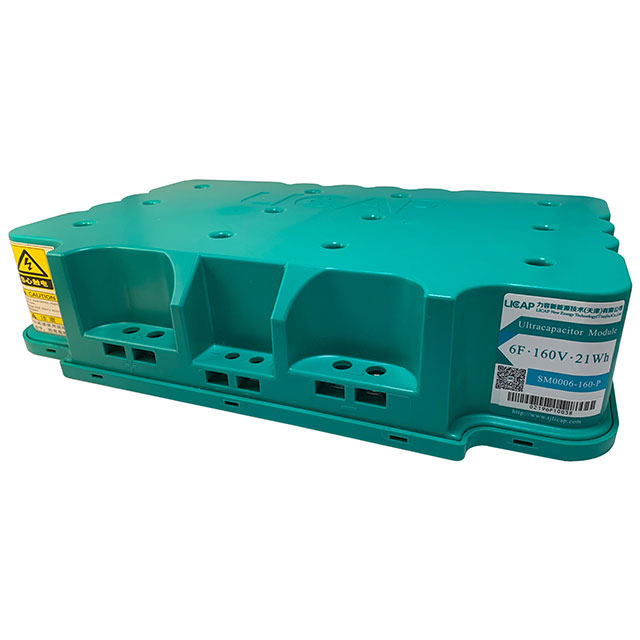

CAPACITOR 6F 0%/20% 160V CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM0006-160-P

Active

LICAP Technologies, Inc.

CAPACITOR 6F 0%/20% 160V CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 783.20
		10	$ 687.50

Description

General part information

- Series

6 F (EDLC) Supercapacitor 160 V Module 200mOhm 1500 Hrs @ 65°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SM0006-160-P	- Series

Capacitance	6 F	6 - 3000 F
ESR (Equivalent Series Resistance)	200 mOhm	0.28 - 200 mOhm
Height - Seated (Max)	-	2.421 - 7.087 in
Height - Seated (Max)	-	61.5 - 180 mm
Height - Seated (Max)	-	2.402 - 7.126 in
Height - Seated (Max)	-	61 - 181 mm
Lifetime @ Temp.	1500 Hrs	1500 Hrs
Mounting Type	Chassis Mount	Chassis Mount, Through Hole
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-50 - -40 °C
Package / Case	Module	Module, Axial, Can - Screw Terminals, Radial, Can - Solder Lug - 4 Lead
Size / Dimension	-	31.85 - 61 mm
Size / Dimension	-	1.254 - 2.402 in
Size / Dimension [x]	14.528 in	6.496 - 16.457 in
Size / Dimension [x]	369 mm	165 - 418 mm
Size / Dimension [y]	240 mm	44 - 276 mm
Size / Dimension [y]	9.449 in	1.732 - 10.866 in
Termination	Screw Terminals	Screw Terminals, Solder Lug
Tolerance [Max]	20 %	20 %
Tolerance [Min]	0 %	0 %
Voltage - Rated	160 V	2.7 - 180 V
Voltage - Rated	-	18 V

- Series

CAPACITOR 6F 0%/20% 180V CHAS

Part	Capacitance	Lifetime @ Temp.	Termination	Package / Case	Mounting Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Tolerance [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated [diameter]
LICAP Technologies, Inc. SM0006-180-P	6 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	180 V	65 °C	-40 °C	240 mm	14.528 in	9.449 in	369 mm	200 mOhm	20 %
LICAP Technologies, Inc. SM0006-160-P	6 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	160 V	65 °C	-40 °C	240 mm	14.528 in	9.449 in	369 mm	200 mOhm	20 %
LICAP Technologies, Inc. SM0062-017-NB	62 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	17 V	65 °C	-40 °C	44 mm	9.449 "	1.732 in	240 mm	22 mOhms	20 %	2.992 in	76 mm
LICAP Technologies, Inc. SC1200-270-ASC	1200 F	1500 Hrs	Screw Terminals	Axial, Can - Screw Terminals	Chassis Mount	2.7 VDC	65 °C	-40 °C					0.58 mOhm	20 %
LICAP Technologies, Inc. SM0125-064-ATH	125 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	64 V	65 °C	-40 °C	276 mm	16.28 in	10.866 in	413.5 mm	8 mOhms	20 %			7.126 in	181 mm
LICAP Technologies, Inc. SM0058-016-P	58 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	16 V	65 °C	-40 °C	47 mm	9.449 "	1.85 "	240 mm	22 mOhms	20 %	2.992 in	76 mm
LICAP Technologies, Inc. SM0500-016-ATH	500 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	16 V	65 °C	-40 °C	68 mm	16.457 in	2.677 "	418 mm	1.8 mOhm	20 %			7.008 "	178 mm
LICAP Technologies, Inc. SC3000-270-ASC	3000 F	1500 Hrs	Screw Terminals	Axial, Can - Screw Terminals	Chassis Mount	2.7 VDC	65 °C	-40 °C		6.496 in		165 mm	0.28 mOhm	20 %					61 mm	2.402 in
LICAP Technologies, Inc. SM0062-018-P	62 F	1500 Hrs	Screw Terminals	Module	Chassis Mount		65 °C	-40 °C	47 mm	9.449 "	1.85 "	240 mm	22 mOhms	20 %	2.992 in	76 mm					18 V
