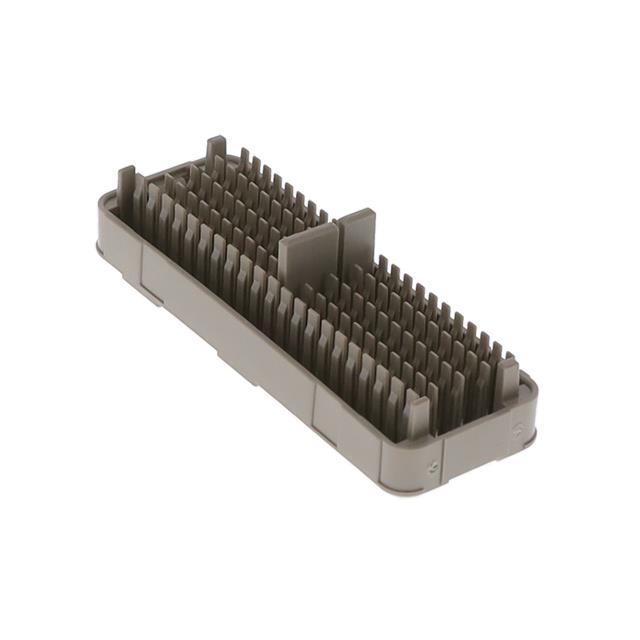

MX60A109XF2

Active

JAE Electronics

CONN SOCKET RETAINER 109 POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN SOCKET RETAINER 109 POS

Technical Specifications

Parameters and characteristics for this part

Specification	MX60A109XF2

Accessory Type	Retainer
Features	IP69K
For Use With/Related Products	MX60A Series
Number of Positions	109

Part	Accessory Type	Features	For Use With/Related Products	Number of Positions	Contact Shape	Termination	Connector Type	Mounting Type	Insulation Color	Number of Rows	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Fastening Type	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Applications	Style	Ingress Protection	Color	Contact Termination	Note
JAE Electronics MX60A109XH1	Cap (Cover)	IP69K	MX60A Series	109
JAE Electronics MX60A177NF2		Board Guide Board Lock			Square	Solder	Header	Through Hole Right Angle	Black	5	All	-40 °C	105 ░C	Shrouded - 4 Wall	Locking Ramp	Male Pin	150	27	Automotive	Board to Cable/Wire	Waterproof
JAE Electronics MX60A109XF2	Retainer	IP69K	MX60A Series	109
JAE Electronics MX60A068XH1	Cap (Cover)	IP69K	MX60A Series	68
JAE Electronics MX60A109SFK							Receptacle	Free Hanging (In-Line)		5		-40 °C	105 ░C		Locking Ramp	Female Socket	88	21				Black	Crimp	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Retainer For MX60A Series
