MX60A177NF2
ActiveJAE Electronics

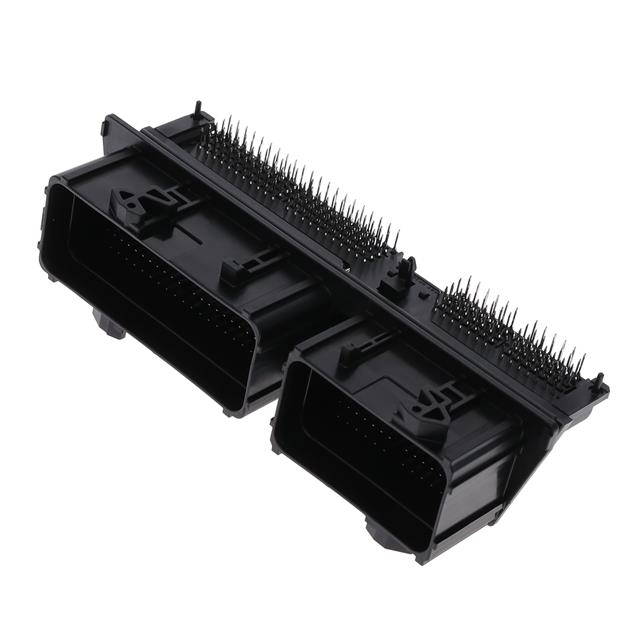

CONN HEADER R/A 177 POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MX60A177NF2
ActiveJAE Electronics
CONN HEADER R/A 177 POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MX60A177NF2 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Board Guide, Board Lock |
| Ingress Protection | Waterproof |
| Insulation Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 150 |
| Number of Positions [custom] | 27 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 35.28 | |
| 10 | $ 30.89 | |||
| 36 | $ 29.56 | |||
| 72 | $ 28.60 | |||
| 108 | $ 27.65 | |||
| 252 | $ 26.12 | |||
Description
General part information
MX60A Series
Connector Header Through Hole, Right Angle 177 (150 + 27 Power) position
