112335

Active

Amphenol RF

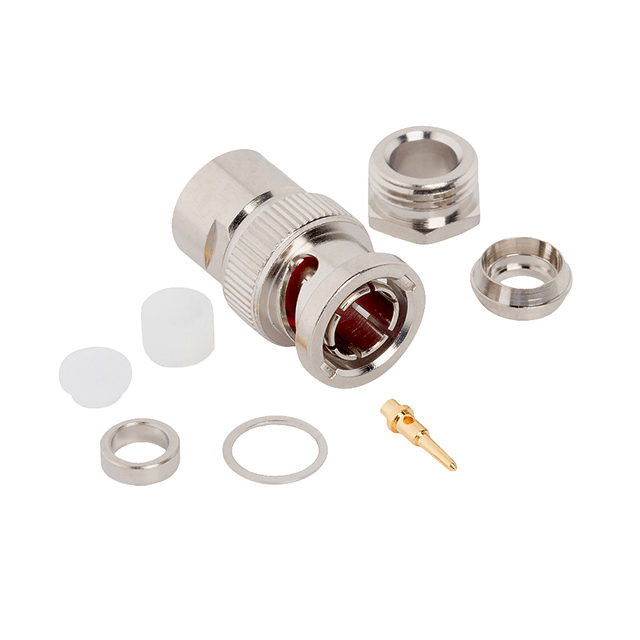

BNC STRAIGHT CLAMP PLUG RG-59 RG-62 75 OHM

Deep-Dive with AI

Search across all available documentation for this part.

112335

Active

Amphenol RF

BNC STRAIGHT CLAMP PLUG RG-59 RG-62 75 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112335

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp
Voltage Rating	500 V

1123 Series

Part	Includes	Center Contact Material	Dielectric Material	Mating Cycles	Housing Color	Fastening Type	Mounting Type	Voltage Rating	Frequency - Max [Max]	Shield Termination	Impedance	Contact Termination	Ingress Protection	Center Contact Plating	Connector Style	Cable Group	Number of Ports	Body Material	Connector Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss
Amphenol RF 112351	1 Clamp 1 Connector 1 Contact 1 Gasket 1 Top Hat 1 Washer	Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	75 Ohms	Crimp	Weatherproof	Gold	BNC	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	Brass	Male Pin Plug	Nickel
Amphenol RF 112356	1 Clamp 1 Connector 1 End Cap 1 Insulator 1 Top Hat 1 Washer	Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line) Right Angle	500 V	4 GHz	Clamp	50 Ohms	Solder	Weatherproof	Gold	BNC	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Brass	Male Pin Plug	Nickel	85 °C	-55 °C	0.2 dB
Amphenol RF 112335		Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	75 Ohms	Solder	Weatherproof	Gold	BNC	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	Brass	Male Pin Plug	Nickel
Amphenol RF 112332		Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	50 Ohms	Solder	Weatherproof	Gold	BNC	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Brass	Male Pin Plug	Nickel			0.2 dB
Amphenol RF 112350	1 Clamp 1 Connector 1 Contact 1 Gasket 1 Top Hat 1 Washer	Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	50 Ohms	Crimp	Weatherproof	Gold	BNC	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	Brass	Male Pin Plug	Nickel			0.2 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.87
		10	$ 3.51
		25	$ 3.33
		50	$ 3.25
		100	$ 3.10
		300	$ 2.71
		500	$ 2.63
		1000	$ 2.24
		2500	$ 2.09
Newark	Each	100	$ 3.67
		250	$ 3.21
		500	$ 3.12
		1000	$ 2.66

Description

General part information

1123 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
