112356

Active

Amphenol RF

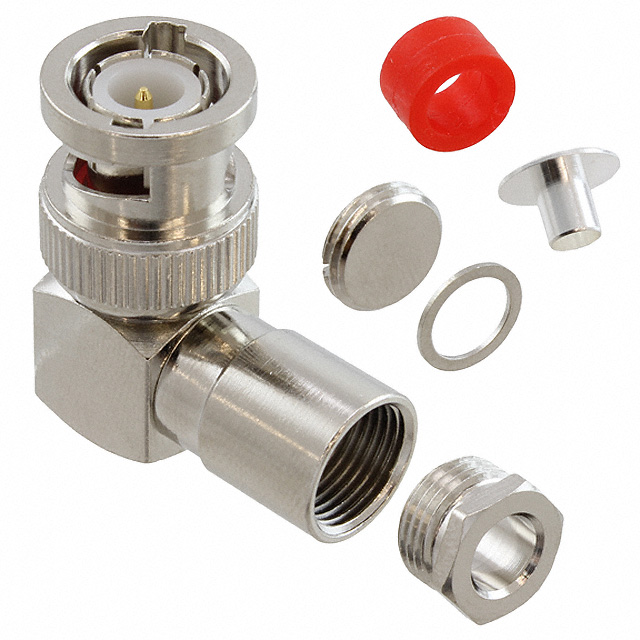

CONN BNC PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

112356

Active

Amphenol RF

CONN BNC PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112356

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 End Cap, 1 Insulator, 1 Clamp, 1 Top Hat, 1 Connector, 1 Washer
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	500 V

1123 Series

Part	Includes	Center Contact Material	Dielectric Material	Mating Cycles	Housing Color	Fastening Type	Mounting Type	Voltage Rating	Frequency - Max [Max]	Shield Termination	Impedance	Contact Termination	Ingress Protection	Center Contact Plating	Connector Style	Cable Group	Number of Ports	Body Material	Connector Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss
Amphenol RF 112351	1 Clamp 1 Connector 1 Contact 1 Gasket 1 Top Hat 1 Washer	Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	75 Ohms	Crimp	Weatherproof	Gold	BNC	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	Brass	Male Pin Plug	Nickel
Amphenol RF 112356	1 Clamp 1 Connector 1 End Cap 1 Insulator 1 Top Hat 1 Washer	Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line) Right Angle	500 V	4 GHz	Clamp	50 Ohms	Solder	Weatherproof	Gold	BNC	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Brass	Male Pin Plug	Nickel	85 °C	-55 °C	0.2 dB
Amphenol RF 112335		Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	75 Ohms	Solder	Weatherproof	Gold	BNC	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	Brass	Male Pin Plug	Nickel
Amphenol RF 112332		Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	50 Ohms	Solder	Weatherproof	Gold	BNC	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Brass	Male Pin Plug	Nickel			0.2 dB
Amphenol RF 112350	1 Clamp 1 Connector 1 Contact 1 Gasket 1 Top Hat 1 Washer	Brass	Polyoxymethylene (POM) Acetal	500	Silver	Bayonet Lock	Free Hanging (In-Line)	500 V	4 GHz	Clamp	50 Ohms	Crimp	Weatherproof	Gold	BNC	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	Brass	Male Pin Plug	Nickel			0.2 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 11.42

Description

General part information

1123 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

No documents available
