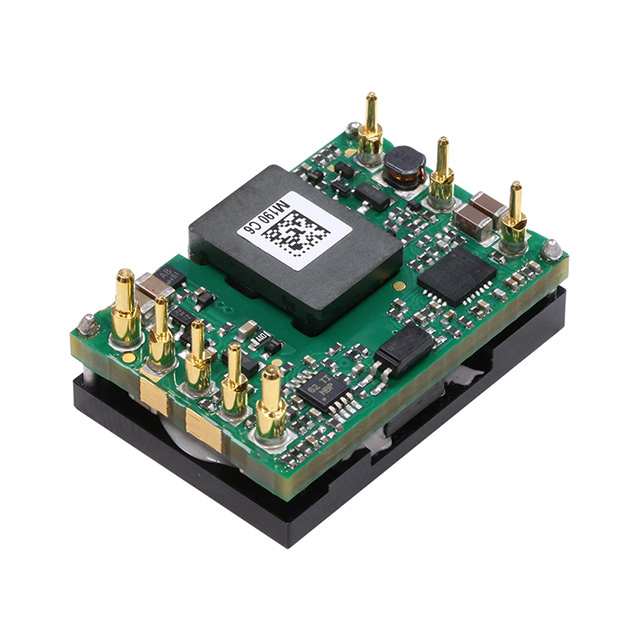

AVD50B-48S12B-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 12V 50W

Deep-Dive with AI

Search across all available documentation for this part.

AVD50B-48S12B-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 12V 50W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVD50B-48S12B-6L

Applications	ITE (Commercial)
Current - Output (Max) [Max]	4.17 A
Efficiency	93 %
Features	OVP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	50 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	12 mm
Size / Dimension [z]	0.47 "
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

AVD50 Series

Part	Applications	Mounting Type	Type	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Control Features	Efficiency	Features	Voltage - Output 1	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]
ARTESYN / Advanced Energy AVD50-48S05P-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	10 A	36 V	8-DIP Module 1/16 Brick	1	Active High Enable	92 %	Remote On/Off	5 V
ARTESYN / Advanced Energy AVD50B-48S05-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.36 in	1.3 "	9.2 mm	22.9 mm	33 mm	0.9 "	10 A	36 V	Sixteenth Brick	1		91.5 %	OCP OTP OVP Remote On/Off	5 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV
ARTESYN / Advanced Energy AVD50B-48S3V3-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	15 A	36 V	8-DIP Module 1/16 Brick	1	Active Low Enable	91 %	Remote On/Off	3.3 V
ARTESYN / Advanced Energy AVD50B-48S12-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.36 in	1.3 "	9.2 mm	22.9 mm	33 mm	0.9 "	4.17 A	36 V	Sixteenth Brick	1		93 %	OCP OTP OVP Remote On/Off	12 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV
ARTESYN / Advanced Energy AVD50B-48S12TL	ITE (Commercial)	Surface Mount	Isolated Module	75 V	50 W	0.37 in	1.3 "	9.4 mm	22.9 mm	33 mm	0.9 "	4.17 A	36 V	Sixteenth Brick	1		93 %	OCP OTP OVP Remote On/Off	12 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV
ARTESYN / Advanced Energy AVD50B-48S12B-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.47 "	1.3 "			33 mm	0.9 "	4.17 A	36 V	Sixteenth Brick	1		93 %	OCP OTP OVP Remote On/Off	12 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV	12 mm	22.9 mm
ARTESYN / Advanced Energy AVD50-48S05SL	ITE (Commercial)	Surface Mount	Isolated Module	75 V	50 W							10 A	36 V		1	Active Low Enable	92 %	Remote On/Off	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 37.58
		5	$ 37.30
		10	$ 37.01
		25	$ 36.43
		40	$ 34.69
		80	$ 31.80
		280	$ 31.22

Description

General part information

AVD50 Series

Isolated Module DC DC Converter 1 Output 12V 4.17A 36V - 75V Input

Documents

Technical documentation and resources

No documents available
