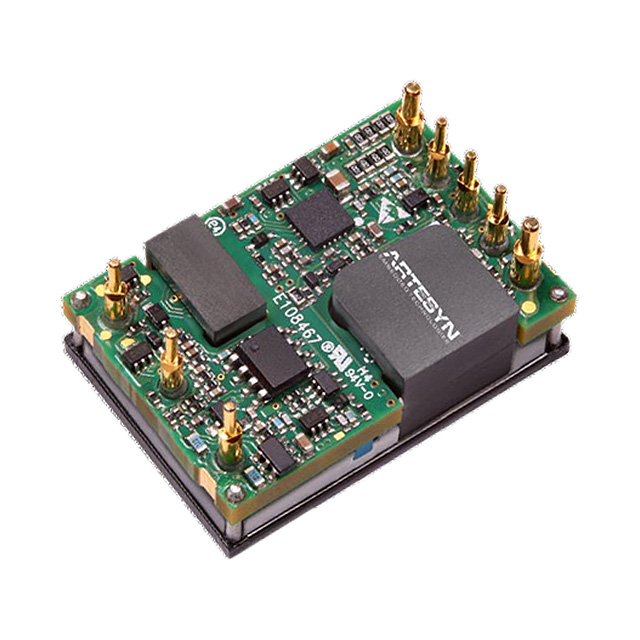

AVD50B-48S3V3-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 3.3V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AVD50 Series +1

AVD50B-48S3V3-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 3.3V 50W

Deep-Dive with AI

DocumentsDatasheet AVD50 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVD50B-48S3V3-6L

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	15 A
Efficiency	91 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	8-DIP Module, 1/16 Brick
Power (Watts)	50 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.37 in
Size / Dimension [z]	9.5 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Output 1	3.3 V

AVD50 Series

Part	Applications	Mounting Type	Type	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Control Features	Efficiency	Features	Voltage - Output 1	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]
ARTESYN / Advanced Energy AVD50-48S05P-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	10 A	36 V	8-DIP Module 1/16 Brick	1	Active High Enable	92 %	Remote On/Off	5 V
ARTESYN / Advanced Energy AVD50B-48S05-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.36 in	1.3 "	9.2 mm	22.9 mm	33 mm	0.9 "	10 A	36 V	Sixteenth Brick	1		91.5 %	OCP OTP OVP Remote On/Off	5 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV
ARTESYN / Advanced Energy AVD50B-48S3V3-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	15 A	36 V	8-DIP Module 1/16 Brick	1	Active Low Enable	91 %	Remote On/Off	3.3 V
ARTESYN / Advanced Energy AVD50B-48S12-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.36 in	1.3 "	9.2 mm	22.9 mm	33 mm	0.9 "	4.17 A	36 V	Sixteenth Brick	1		93 %	OCP OTP OVP Remote On/Off	12 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV
ARTESYN / Advanced Energy AVD50B-48S12TL	ITE (Commercial)	Surface Mount	Isolated Module	75 V	50 W	0.37 in	1.3 "	9.4 mm	22.9 mm	33 mm	0.9 "	4.17 A	36 V	Sixteenth Brick	1		93 %	OCP OTP OVP Remote On/Off	12 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV
ARTESYN / Advanced Energy AVD50B-48S12B-6L	ITE (Commercial)	Through Hole	Isolated Module	75 V	50 W	0.47 "	1.3 "			33 mm	0.9 "	4.17 A	36 V	Sixteenth Brick	1		93 %	OCP OTP OVP Remote On/Off	12 V	Sixteenth Brick	85 °C	-40 °C	1.5 kV	12 mm	22.9 mm
ARTESYN / Advanced Energy AVD50-48S05SL	ITE (Commercial)	Surface Mount	Isolated Module	75 V	50 W							10 A	36 V		1	Active Low Enable	92 %	Remote On/Off	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 39.46
		5	$ 39.15
		10	$ 38.85
		25	$ 38.24
		40	$ 36.42
		192	$ 33.39
