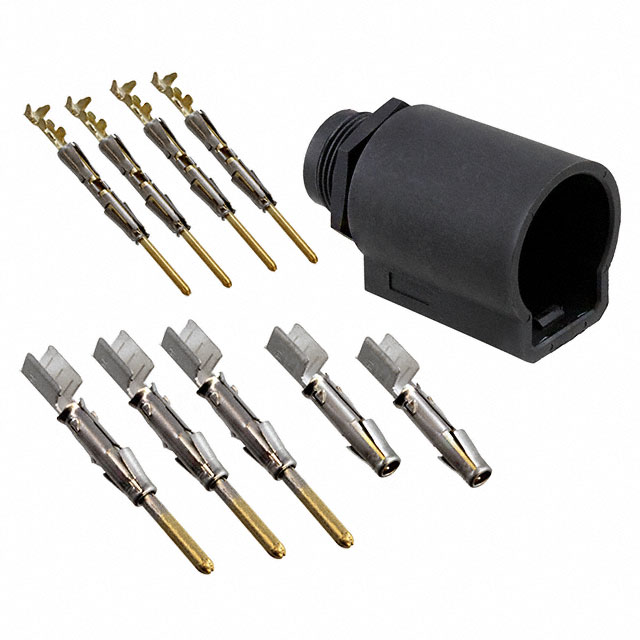

UTL7102G1W3P16AWG

Active

Souriau-Sunbank by Eaton

CONN CIRC RCPT 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

UTL7102G1W3P16AWG

Active

Souriau-Sunbank by Eaton

CONN CIRC RCPT 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTL7102G1W3P16AWG

Applications	Industrial
Color	Black
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	UV Resistant
Ingress Protection	IP69K, IP68, IP67
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 5VA
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	10-2
Shielding	Unshielded
Termination	Crimp

UTL71 Series

Part	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Type	Connector Type	Material Flammability Rating	Note	Shell Size - Insert	Fastening Type	Insert Material	Mounting Feature	Contact Type	Housing Color	Contact Shape	Contact Size	Contact Size	Shielding	Ingress Protection	Orientation	Color	Contact Material	Termination	Features	Primary Material	Applications	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Size
Souriau-Sunbank by Eaton UTL7122G1W5P	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	8	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	12-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular	3 5	16 20	Unshielded	IP67 IP68 IP69K	Keyed
Souriau-Sunbank by Eaton UTL7103G1S20AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7102G1W3P	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	6	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	10-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular			Unshielded	IP67 IP68 IP69K	Keyed									16 (3) 20 (3)
Souriau-Sunbank by Eaton UTL7102G1W3P16AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	6		Female Sockets Male Pins Receptacle	UL94 5VA		10-2	Latch Lock	Nylon Polyamide (PA)	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7102G1W3P03	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	6	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	10-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Gray	Circular			Unshielded	IP67 IP68 IP69K	Keyed									16 (3) 20 (3)
Souriau-Sunbank by Eaton UTL7102G1W3S	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	6	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	10-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular			Unshielded	IP67 IP68 IP69K	Keyed									16 (3) 20 (3)
Souriau-Sunbank by Eaton UTL7103G1P16AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7103G1S16AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7122G1W5S	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	8	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	12-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular	3 5	16 20	Unshielded	IP67 IP68 IP69K	Keyed
Souriau-Sunbank by Eaton UTL7103G1P20AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.45
Newark	Each	1	$ 31.08
		100	$ 24.32
		500	$ 20.80
		1000	$ 17.38
		2500	$ 16.52
		5000	$ 15.71
		10000	$ 14.76

Description

General part information

UTL71 Series

6 (3 + 2 Power + PE) Position Circular Connector Receptacle, Female Sockets and Male Pins Crimp

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
