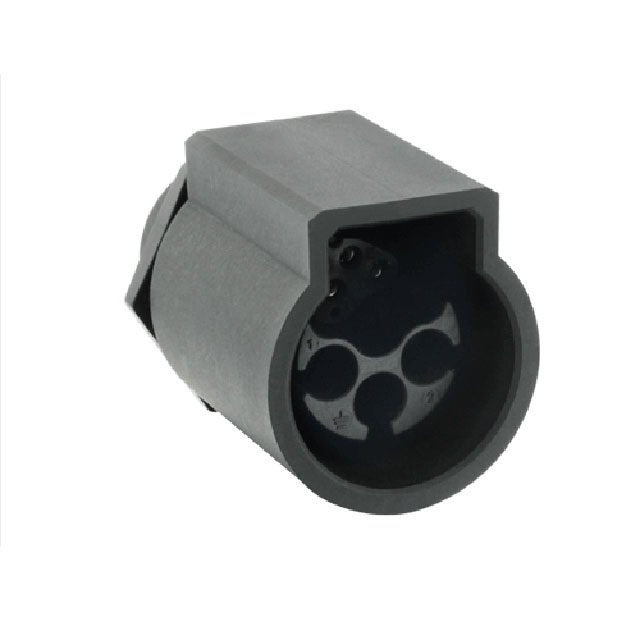

UTL7122G1W5P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG F/M 8POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

UTL7122G1W5P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG F/M 8POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTL7122G1W5P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	5, 3
Contact Size	16, 20
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 5VA
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Nylon, Polyamide (PA), Glass Reinforced
Shell Size - Insert	12-2
Shielding	Unshielded
Type	For Female Sockets and Male Pins

UTL71 Series

Part	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Type	Connector Type	Material Flammability Rating	Note	Shell Size - Insert	Fastening Type	Insert Material	Mounting Feature	Contact Type	Housing Color	Contact Shape	Contact Size	Contact Size	Shielding	Ingress Protection	Orientation	Color	Contact Material	Termination	Features	Primary Material	Applications	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Size
Souriau-Sunbank by Eaton UTL7122G1W5P	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	8	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	12-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular	3 5	16 20	Unshielded	IP67 IP68 IP69K	Keyed
Souriau-Sunbank by Eaton UTL7103G1S20AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7102G1W3P	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	6	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	10-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular			Unshielded	IP67 IP68 IP69K	Keyed									16 (3) 20 (3)
Souriau-Sunbank by Eaton UTL7102G1W3P16AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	6		Female Sockets Male Pins Receptacle	UL94 5VA		10-2	Latch Lock	Nylon Polyamide (PA)	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7102G1W3P03	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	6	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	10-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Gray	Circular			Unshielded	IP67 IP68 IP69K	Keyed									16 (3) 20 (3)
Souriau-Sunbank by Eaton UTL7102G1W3S	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	6	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	10-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular			Unshielded	IP67 IP68 IP69K	Keyed									16 (3) 20 (3)
Souriau-Sunbank by Eaton UTL7103G1P16AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7103G1S16AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash
Souriau-Sunbank by Eaton UTL7122G1W5S	Glass Reinforced Nylon Polyamide (PA)	-40 °C	105 ░C	8	For Female Sockets and Male Pins	Receptacle Housing	UL94 5VA	Contacts Not Included	12-2	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut	Crimp	Black	Circular	3 5	16 20	Unshielded	IP67 IP68 IP69K	Keyed
Souriau-Sunbank by Eaton UTL7103G1P20AWG	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	4		Female Sockets Male Pins Receptacle	UL94 5VA		10-3	Latch Lock	Thermoplastic	Bulkhead - Rear Side Nut						Unshielded	IP67 IP68 IP69K		Black	Copper Alloy	Crimp	UV Resistant	Plastic	Industrial	Gold	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.60
		10	$ 16.98
		25	$ 16.10
		50	$ 15.87
		100	$ 14.00
		250	$ 13.07
		500	$ 12.79

Description

General part information

UTL71 Series

8 (5 + 2 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
