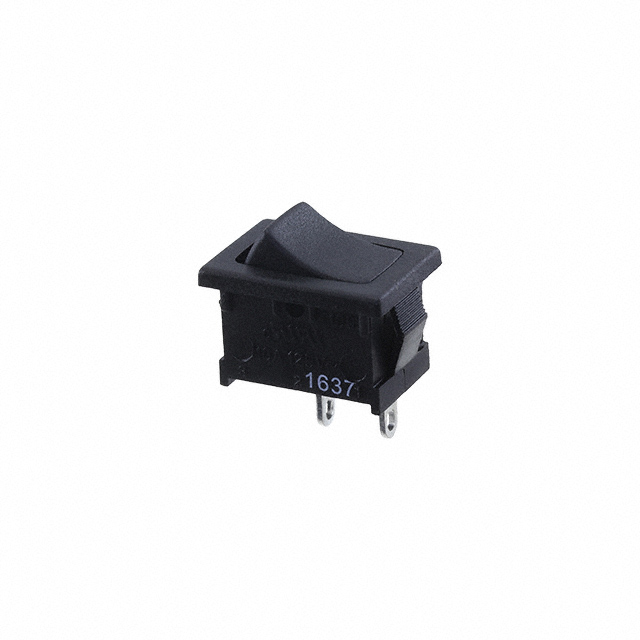

RA12131100

Active

E-Switch

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Actuator Marking	Electrical Life	Switch Function	Actuator Type	Termination Style	Voltage Rating - AC
E-Switch RA12131123	SPST	Black	55 °C	-20 C	11 A	cULus	13.1 mm	19.4 mm	Panel Mount Snap-In	ON OFF Vertical	10000 Cycles	On-Off	Concave (Curved)	Solder Lug	125 V
E-Switch RA12131185	SPST	Black	55 °C	-20 C	10 A	cULus	13.1 mm	19.4 mm	Panel Mount Snap-In	Rectangle on End	10000 Cycles	On-Off	Concave (Curved)	Solder Lug	125 V
E-Switch RA12131100	SPST	Black	55 °C	-20 C	10 A	cULus	13.1 mm	19.4 mm	Panel Mount Snap-In	No Marking	10000 Cycles	On-Off	Concave (Curved)	Solder Lug	125 V
E-Switch RA1213112R	SPST	Black	55 °C	-20 C	11 A	cULus	13.1 mm	19.4 mm	Panel Mount Snap-In	O I	10000 Cycles	On-Off	Concave (Curved)	Solder Lug	125 V
E-Switch RA12131121	SPST	Black	55 °C	-20 C	11 A	cULus	13.1 mm	19.4 mm	Panel Mount Snap-In	O -	10000 Cycles	On-Off	Concave (Curved)	Solder Lug	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
