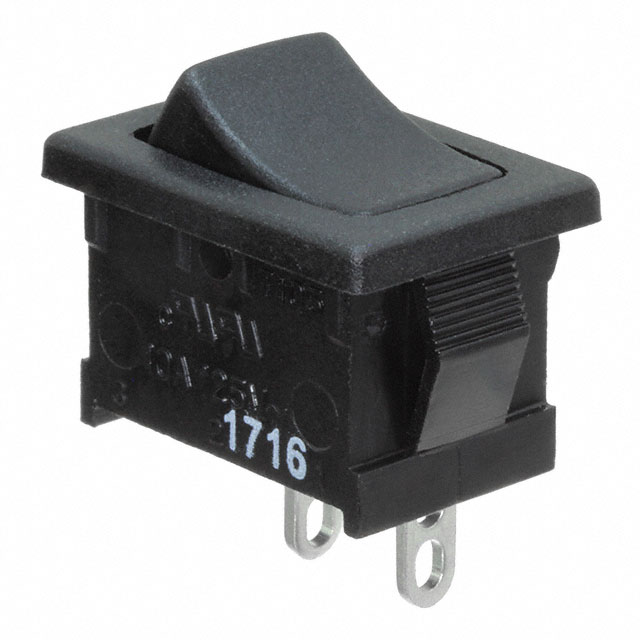

RA12131185
ActiveE-Switch
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RA12131185
ActiveE-Switch
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RA12131185 |
|---|---|
| Actuator Marking | Rectangle on End |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.4 mm |
| Panel Cutout Dimensions [y] | 13.1 mm |
| Switch Function | On-Off |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
RA12131 Series
| Part | Circuit | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Approval Agency | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Actuator Marking | Electrical Life | Switch Function | Actuator Type | Termination Style | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | SPST | Black | 55 °C | -20 C | 11 A | cULus | 13.1 mm | 19.4 mm | Panel Mount Snap-In | ON OFF Vertical | 10000 Cycles | On-Off | Concave (Curved) | Solder Lug | 125 V |
E-Switch | SPST | Black | 55 °C | -20 C | 10 A | cULus | 13.1 mm | 19.4 mm | Panel Mount Snap-In | Rectangle on End | 10000 Cycles | On-Off | Concave (Curved) | Solder Lug | 125 V |
E-Switch | SPST | Black | 55 °C | -20 C | 10 A | cULus | 13.1 mm | 19.4 mm | Panel Mount Snap-In | No Marking | 10000 Cycles | On-Off | Concave (Curved) | Solder Lug | 125 V |
E-Switch | SPST | Black | 55 °C | -20 C | 11 A | cULus | 13.1 mm | 19.4 mm | Panel Mount Snap-In | O I | 10000 Cycles | On-Off | Concave (Curved) | Solder Lug | 125 V |
E-Switch | SPST | Black | 55 °C | -20 C | 11 A | cULus | 13.1 mm | 19.4 mm | Panel Mount Snap-In | O - | 10000 Cycles | On-Off | Concave (Curved) | Solder Lug | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.47 | |
| 10 | $ 0.42 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.38 | |||
| 200 | $ 0.36 | |||
| 400 | $ 0.34 | |||
| 600 | $ 0.31 | |||
Description
General part information
RA12131 Series
Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
