Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

0814-0-15-15-34-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0814-0-15-15-34-27-04-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall [x]	0.28 in
Length - Overall [x]	7.11 mm
Mounting Hole Diameter [diameter]	2.08 mm
Mounting Hole Diameter [diameter]	0.082 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter	0.03 in
Tail Diameter	0.76 mm
Tail Type	Standard Tail
Termination	Solder

0814-0 Series

Part	Socket Depth	Socket Depth	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Termination	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter	Tail Diameter
Mill-Max Manufacturing Corp. 0814-0-15-80-34-14-04-0	3.81 mm	0.15 in	Gold	10 Áin	0.25 Ám	0.28 in	7.11 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	2.29 mm	0.09 in	Standard Tail	Solder	Beryllium Copper	1.63 mm	0.064 in	2.08 mm	0.082 in	-55 °C	125 °C	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0814-0-15-80-34-80-04-0	3.81 mm	0.15 in	Tin	200 Áin	5.08 Ám	0.28 in	7.11 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	2.29 mm	0.09 in	Standard Tail	Solder	Beryllium Copper	1.63 mm	0.064 in	2.08 mm	0.082 in	-55 °C	125 °C	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0814-0-15-01-34-14-04-0	3.81 mm	0.15 in	Gold	10 Áin	0.25 Ám	0.28 in	7.11 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	2.29 mm	0.09 in	Standard Tail	Solder	Beryllium Copper	1.63 mm	0.064 in	2.08 mm	0.082 in	-55 °C	125 °C	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0814-0-15-01-34-01-04-0	3.81 mm	0.15 in	Tin-Lead	200 Áin	5.08 Ám	0.28 in	7.11 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	2.29 mm	0.09 in	Standard Tail	Solder	Beryllium Copper	1.63 mm	0.064 in	2.08 mm	0.082 in	-55 °C	125 °C	0.03 in	0.76 mm
Mill-Max Manufacturing Corp. 0814-0-15-15-34-27-04-0	3.81 mm	0.15 in	Gold	30 Áin	0.76 Ám	0.28 in	7.11 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	2.29 mm	0.09 in	Standard Tail	Solder	Beryllium Copper	1.63 mm	0.064 in	2.08 mm	0.082 in	-55 °C	125 °C	0.03 in	0.76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25
		10	$ 1.05
		25	$ 1.01
		50	$ 0.99
		100	$ 0.95
		250	$ 0.86
		500	$ 0.77
		1000	$ 0.69
		3000	$ 0.62

Description

General part information

0814-0 Series

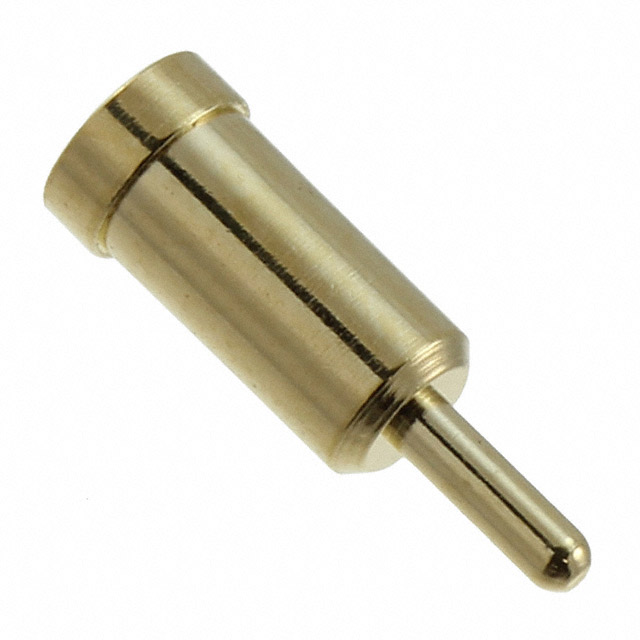

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Solder
