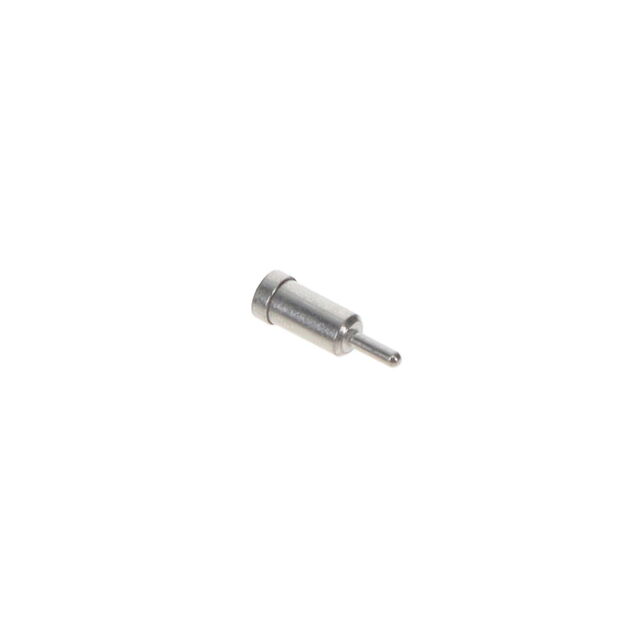

0814-0 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Flange Diameter	Socket Depth	Contact Finish Thickness	Length - Overall	Mounting Hole Diameter	Tail Type	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Material	Tail Diameter	Contact Finish	Pin Hole Diameter	Termination
Mill-Max Manufacturing Corp. 0814-0-15-80-34-14-04-0	125 °C	-55 °C	0.09 in	0.15 in	10 Ąin	0.28 in	0.082 in	Standard Tail	0.032 in	0.046 in	Beryllium Copper	0.03 in	Gold	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-80-34-80-04-0	125 °C	-55 °C	0.09 in	0.15 in	200 µin	0.28 in	0.082 in	Standard Tail	0.032 in	0.046 in	Beryllium Copper	0.03 in	Tin	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-01-34-14-04-0	125 °C	-55 °C	0.09 in	0.15 in	10 Ąin	0.28 in	0.082 in	Standard Tail	0.032 in	0.046 in	Beryllium Copper	0.03 in	Gold	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-01-34-01-04-0	125 °C	-55 °C	0.09 in	0.15 in	200 µin	0.28 in	0.082 in	Standard Tail	0.032 in	0.046 in	Beryllium Copper	0.03 in	Tin-Lead	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-15-34-27-04-0	125 °C	-55 °C	0.09 in	0.15 in	30 µin	0.28 in	0.082 in	Standard Tail	0.032 in	0.046 in	Beryllium Copper	0.03 in	Gold	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-01-34-27-04-0	125 °C	-55 °C	0.09 in	0.15 in	30 µin	0.28 in	0.082 in	Standard Tail	0.032 in	0.046 in	Beryllium Copper	0.03 in	Gold	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-80-34-27-04-0	125 °C	-55 °C	0.09 in	0.15 in	30 µin	0.28 in	0.082 in	Standard Tail	0.032 in	0.046 in	Beryllium Copper	0.03 in	Gold	0.064 in	Solder
