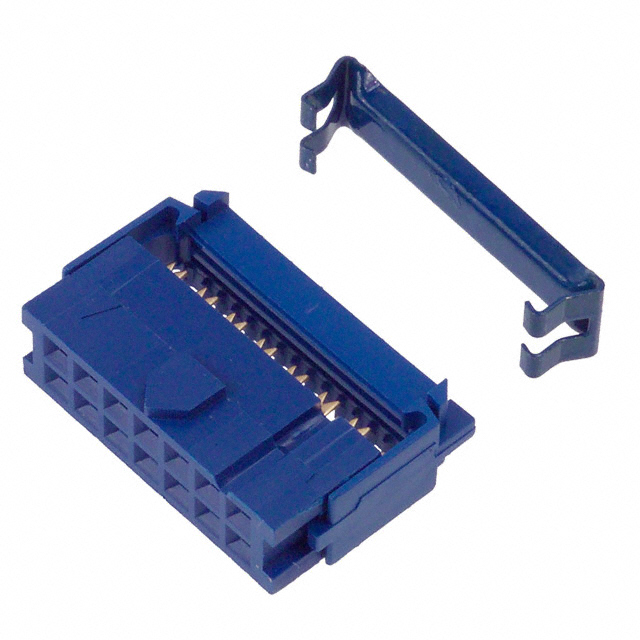

CWR-217-14-0000

Obsolete

CW Industries

HEADERS & WIRE HOUSINGS CONN SOCKET 14PIN GOLD W/KEY/STR REL

CWR-217-14-0000

Obsolete

CW Industries

HEADERS & WIRE HOUSINGS CONN SOCKET 14PIN GOLD W/KEY/STR REL

Description Specifications Series Pricing CAD Documents

Description

General part information

CWR-217 Series

14 Position Rectangular Receptacle Connector IDC Gold

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-217-14-0000

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Type	Female Socket
Features	Feed Through, Strain Relief, Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch	0.1 in
Row Spacing	0.1 in
Wire Type	Ribbon Cable

CWR-217 Series

Part	Contact Type	Color	Row Spacing	Features	Cable Termination	Mounting Type	Contact Finish	Wire Type	Number of Rows	Connector Type	Number of Positions	Pitch	Contact Finish Thickness
CW Industries CWR-217-34-0203	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle	34	0.1 in
CW Industries CWR-217-10-0003	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin-Lead	Ribbon Cable	2	Receptacle	10	0.1 in	100 µin
CW Industries CWR-217-10-0000	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Gold	Ribbon Cable	2	Receptacle	10	0.1 in	10 Ąin
CW Industries CWR-217-20-0203	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle	20	0.1 in
CW Industries CWR-217-40-0203	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle	40	0.1 in
CW Industries CWR-217-14-0000	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Gold	Ribbon Cable	2	Receptacle	14	0.1 in	10 Ąin
CW Industries CWR-217-26-0203	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle	26	0.1 in
CW Industries CWR-217-14-0203	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle	14	0.1 in
CW Industries CWR-217-50-0203	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin	Ribbon Cable	2	Receptacle	50	0.1 in
CW Industries CWR-217-40-0003	Female Socket	Blue	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Tin-Lead	Ribbon Cable	2	Receptacle	40	0.1 in	100 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CWR-217-14-0000 | Datasheet
