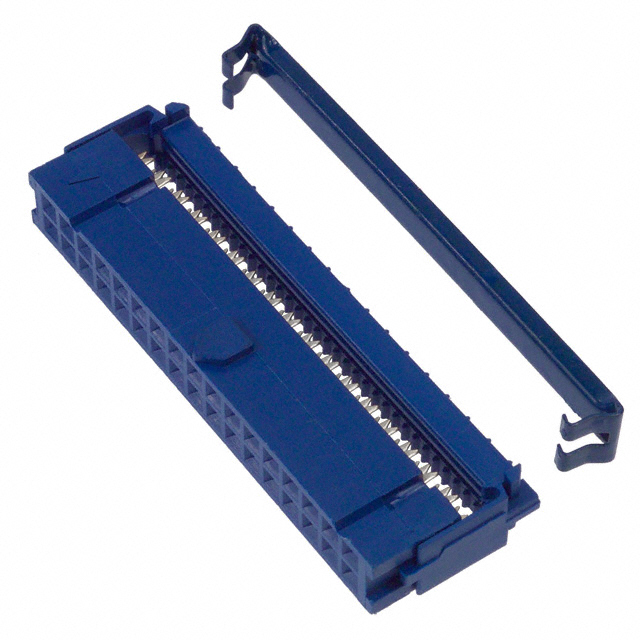

CWR-217-34-0203

Active

CW Industries

CONN RCPT 34POS IDC TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWR-217-34-0203

Active

CW Industries

CONN RCPT 34POS IDC TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-217-34-0203

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Tin
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	34
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

CWR-217 Series

Part	Mounting Type	Wire Type	Number of Positions	Number of Rows	Contact Finish	Features	Color	Row Spacing [x]	Row Spacing	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness
CW Industries CWR-217-34-0203	Free Hanging (In-Line)	Ribbon Cable	34	2	Tin	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC
CW Industries CWR-217-10-0000	Free Hanging (In-Line)	Ribbon Cable	10	2	Gold	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC	10 Áin	0.25 Ám
CW Industries CWR-217-20-0203	Free Hanging (In-Line)	Ribbon Cable	20	2	Tin	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC
CW Industries CWR-217-40-0203	Free Hanging (In-Line)	Ribbon Cable	40	2	Tin	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC
CW Industries CWR-217-14-0000	Free Hanging (In-Line)	Ribbon Cable	14	2	Gold	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC	10 Áin	0.25 Ám
CW Industries CWR-217-26-0203	Free Hanging (In-Line)	Ribbon Cable	26	2	Tin	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC
CW Industries CWR-217-14-0203	Free Hanging (In-Line)	Ribbon Cable	14	2	Tin	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC
CW Industries CWR-217-50-0203	Free Hanging (In-Line)	Ribbon Cable	50	2	Tin	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC
CW Industries CWR-217-40-0003	Free Hanging (In-Line)	Ribbon Cable	40	2	Tin-Lead	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC	100 µin	2.54 µm
CW Industries CWR-217-40-0000	Free Hanging (In-Line)	Ribbon Cable	40	2	Gold	Feed Through Polarizing Key Strain Relief	Blue	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Receptacle	IDC	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.63
		10	$ 5.11
		25	$ 4.84
		50	$ 4.73
		100	$ 4.50
		300	$ 3.94
		500	$ 3.83
		1000	$ 3.27
		2500	$ 3.04

Description

General part information

CWR-217 Series

34 Position Rectangular Receptacle Connector IDC Tin
