WM031I,BK

Active

Serpac

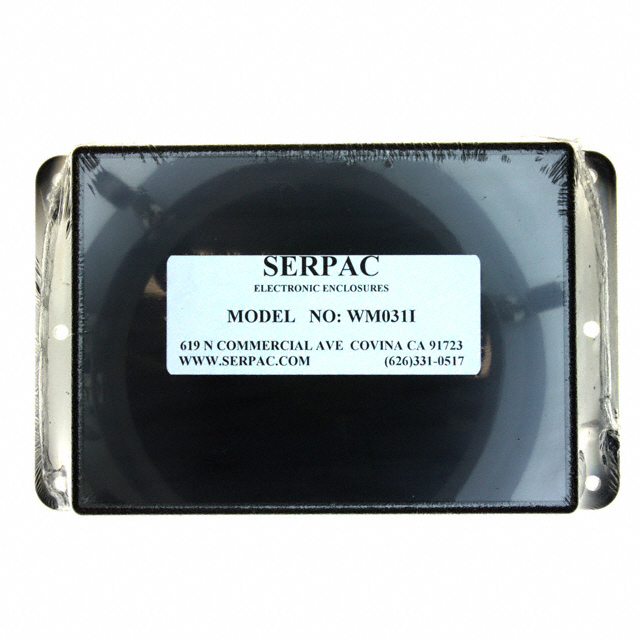

BOX ABS BLACK 4.38"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

WM031I,BK

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.95
		5	$ 5.59
		10	$ 5.35
		25	$ 5.18
		50	$ 5.11
		100	$ 5.07
		250	$ 5.04
		500	$ 5.02
		1000	$ 5.02

Description

General part information

WM031 Series

Box Plastic, ABS Black Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.100" (27.94mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM031I,BK	WM031 Series

Area (L x W)	14.2 in²	14.2 in²
Area (L x W)	92 cm˛	92 cm˛
Color	Black	Gray, Almond, Black
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange	PCB Supports, Wall Mount, Mounting Flange, Front Access
Height [z]	27.94 mm	27.94 mm
Height [z]	1.1 in	1.1 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.18 lb	0.18 lb
Weight	81.65 g	81.65 g

WM031 Series

BOX ABS GRAY 4.38"L X 3.25"W

Part	Weight	Weight	Ratings	Area (L x W)	Area (L x W)	Features	Material Flammability Rating	Container Type	Design	Height [z]	Height [z]	Thickness	Thickness	Color	Material
Serpac WM031,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031RI,AL	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Almond	Plastic, ABS
Serpac WM031I,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031I,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
Serpac WM031R,AL	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Almond	Plastic, ABS
Serpac WM031RI,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
Serpac WM031R,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031RI,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031R,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
Serpac WM031,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
