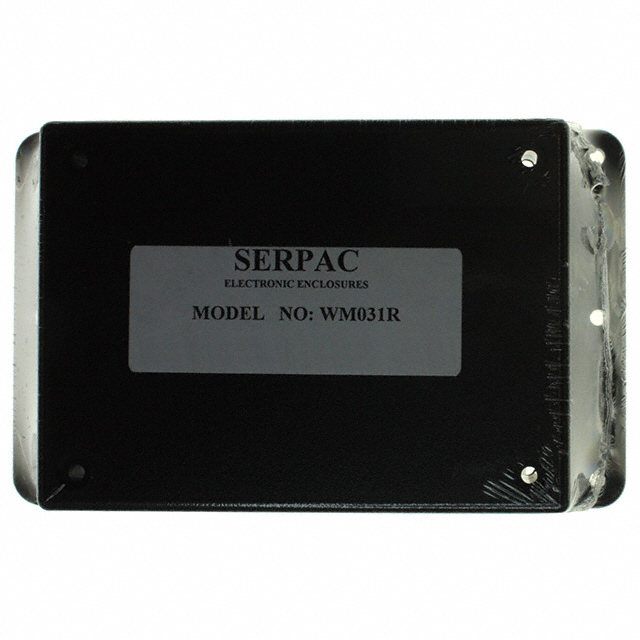

WM031R,BK

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

WM031R,BK

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.19

Description

General part information

WM031 Series

Box Plastic, ABS Black Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.100" (27.94mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM031R,BK	WM031 Series

Area (L x W)	14.2 in²	14.2 in²
Area (L x W)	92 cm˛	92 cm˛
Color	Black	Gray, Almond, Black
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	PCB Supports, Wall Mount, Mounting Flange, Front Access
Height [z]	27.94 mm	27.94 mm
Height [z]	1.1 in	1.1 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.18 lb	0.18 lb
Weight	81.65 g	81.65 g

WM031 Series

BOX ABS GRAY 4.38"L X 3.25"W

Part	Weight	Weight	Ratings	Area (L x W)	Area (L x W)	Features	Material Flammability Rating	Container Type	Design	Height [z]	Height [z]	Thickness	Thickness	Color	Material
Serpac WM031,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031RI,AL	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Almond	Plastic, ABS
Serpac WM031I,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031I,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
Serpac WM031R,AL	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Almond	Plastic, ABS
Serpac WM031RI,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
Serpac WM031R,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031RI,GY	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Gray	Plastic, ABS
Serpac WM031R,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Front Access, Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
Serpac WM031,BK	0.18 lb	81.65 g	IP40, NEMA 1	14.2 in²	92 cm˛	Mounting Flange, PCB Supports, Wall Mount	UL94 HB	Box	Cover Included	27.94 mm	1.1 in	2.54 mm	0.1 in	Black	Plastic, ABS
