7958A 0101000

Active

Belden Inc.

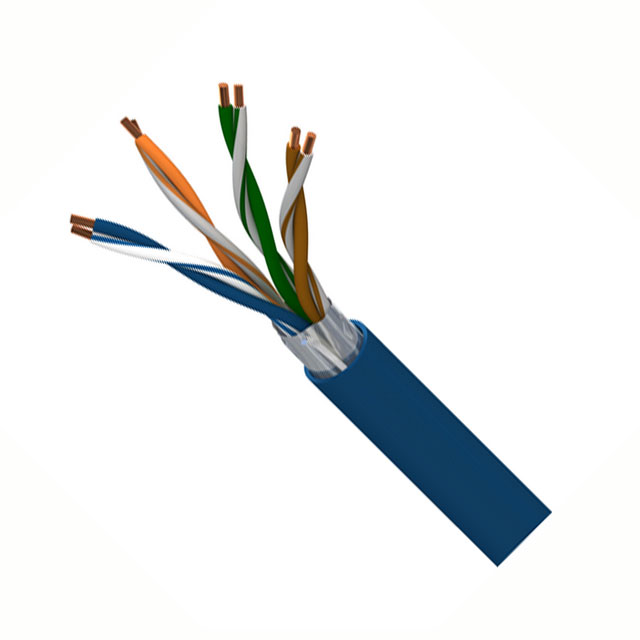

SHLD NETWORK CABLE, 4 PAIR, 24AWG, 305M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

7958A 0101000

Active

Belden Inc.

SHLD NETWORK CABLE, 4 PAIR, 24AWG, 305M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7958A 0101000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, UV Resistant, Oil Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft, 500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Network
Wire Gauge	24 AWG

7958A Series

Part	Jacket Color	Shield Type	Ratings	Length	Length [x]	Features	Number of Conductors	Shield Coverage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Wire Gauge	Shield Material	Length	Length [x]	Conductor Strand	Jacket (Insulation) Material	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Spool Size	Spool Size	Length
Belden Inc. 7958A 0101000	Black	Foil	UL Style CMR	15.24 m 304.8 m	50 ft 500 '	Drain Wire Oil Resistant Rip Cord UV Resistant	8	100 %	Multi-Pair Cat5e	6.73 mm	0.265 in	Polyolefin (PO)	24 AWG	Aluminum	1000 ft	152.4 m	Solid	Poly-Vinyl Chloride (PVC)	Copper Bare	-40 °C	75 ░C	Network
Belden Inc. 7958A 0061000	Blue	Foil	UL Style 21047	304.8 m		Oil Resistant UV Resistant	8	100 %	Multi-Pair Cat5e	6.73 mm	0.265 in	Polyolefin (PO)	24 AWG	Aluminum	1000 ft		Solid	Poly-Vinyl Chloride (PVC)	Copper Bare	-40 °C	75 ░C	Industrial Network
Belden Inc. 7958A 0102000	Black	Foil	UL Style 21047			Oil Resistant UV Resistant	8	100 %	Multi-Pair Cat5e	6.73 mm	0.265 in	Polyolefin (PO)	24 AWG	Aluminum			Solid	Poly-Vinyl Chloride (PVC)	Copper Bare	-40 °C	75 ░C	Industrial Network	609.6 m	2000 '	Enter Number of Feet in Order Quantity
Belden Inc. 7958A 0081000	Gray	Foil	UL Style 21047	304.8 m		Oil Resistant UV Resistant	8	100 %	Multi-Pair Cat5e	6.73 mm	0.265 in	Polyolefin (PO)	24 AWG	Aluminum	1000 ft		Solid	Poly-Vinyl Chloride (PVC)	Copper Bare	-40 °C	75 ░C	Industrial Network
Belden Inc. 7958A 1NH1000	Teal	Foil	UL Style 21047	304.8 m		Oil Resistant UV Resistant	8	100 %	Multi-Pair Cat5e	6.73 mm	0.265 in	Polyolefin (PO)	24 AWG	Aluminum	1000 ft		Solid	Poly-Vinyl Chloride (PVC)	Copper Bare	-40 °C	75 ░C	Industrial Network

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1239.09
		1	$ 218.37
		5	$ 178.67
		5	$ 1161.65
		10	$ 138.96
		25	$ 119.11
		50	$ 111.17
	Spool	1000	$ 2.12
		3000	$ 2.01
Newark	Spool of 305	1	$ 995.22
		5	$ 956.73
		10	$ 923.74

Description

General part information

7958A Series

8 (4 Pair) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil 50.00' (15.24m)

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
