7958A 0102000
ActiveBelden Inc.

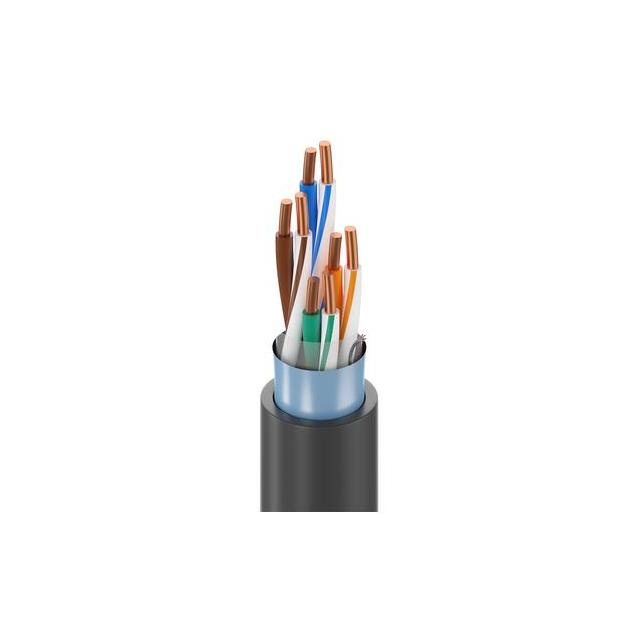

CABLE CAT5E 8COND 24AWG FOOT
Deep-Dive with AI
Search across all available documentation for this part.
7958A 0102000
ActiveBelden Inc.
CABLE CAT5E 8COND 24AWG FOOT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7958A 0102000 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | Oil Resistant, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 6.73 mm |
| Jacket (Insulation) Diameter [diameter] | 0.265 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style 21047 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Spool Size | 609.6 m |
| Spool Size | 2000 ' |
| Usage | Industrial, Network |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 5.28 | |
| 2 | $ 5.03 | |||
| 3 | $ 4.89 | |||
| 5 | $ 4.72 | |||
| 7 | $ 4.61 | |||
| 10 | $ 4.49 | |||
| 25 | $ 4.21 | |||
| 50 | $ 4.00 | |||
| 100 | $ 3.81 | |||
Description
General part information
7958A Series
8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
