845-028-541-403

Active

EDAC Inc.

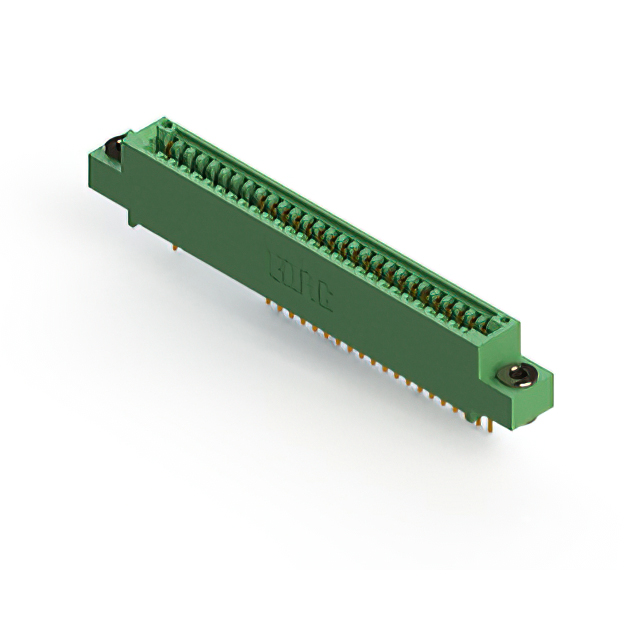

CARD EDGE CONNECTOR, 28 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-028-541-403

Active

EDAC Inc.

CARD EDGE CONNECTOR, 28 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.116, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-028-541-403

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	28
Number of Positions/Bay/Row [custom]	28
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

845-028 Series

...

Part	Gender	Contact Finish	Read Out	Mounting Type	Number of Rows	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Termination	Termination Rows	Flange Feature	Flange Feature	Color	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 845-028-520-402	Female	Gold	Single	Through Hole	1	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	28	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	1	3.25 mm	0.128 in	Green	Cantilever
EDAC Inc. 845-028-541-403	Female	Gold	Single	Through Hole	1	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	28	2.54 mm	0.1 in	10 Áin	0.25 Ám	Wire Wrap	1			Green	Cantilever	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 845-028-556-803	Female	Gold	Dual	Board Edge Straddle Mount	2	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	2			Green	Cantilever	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Card Extender
EDAC Inc. 845-028-521-812	Female	Gold	Dual	Through Hole	2	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	2	3.25 mm	0.128 in	Green	Cantilever		Side Mount Opening Unthreaded
EDAC Inc. 845-028-559-208	Female	Gold	Dual	Through Hole Right Angle	2	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	2			Green	Cantilever		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 845-028-521-101	Female	Gold	Single	Through Hole	1	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	28	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	1			Green	Cantilever
EDAC Inc. 845-028-544-202	Female	Gold	Dual	Through Hole	2	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Wire Wrap	2			Green	Cantilever	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 845-028-540-808	Female	Gold	Dual	Through Hole	2	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Wire Wrap	2			Green	Cantilever		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-028-559-507	Female	Gold	Dual	Through Hole Right Angle	2	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	2			Green	Cantilever		M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-028-559-812	Female	Gold	Dual	Through Hole Right Angle	2	28	Copper Alloy	125 °C	-40 °C	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	14	2.54 mm	0.1 in	10 Áin	0.25 Ám	Solder	2	3.25 mm	0.128 in	Green	Cantilever		Side Mount Opening Unthreaded
